Electrical Components
D366 6 SM
3. Original trailing edge sensor [B] ( x 1)
4. Original length sensors [C] (
x 1 each)

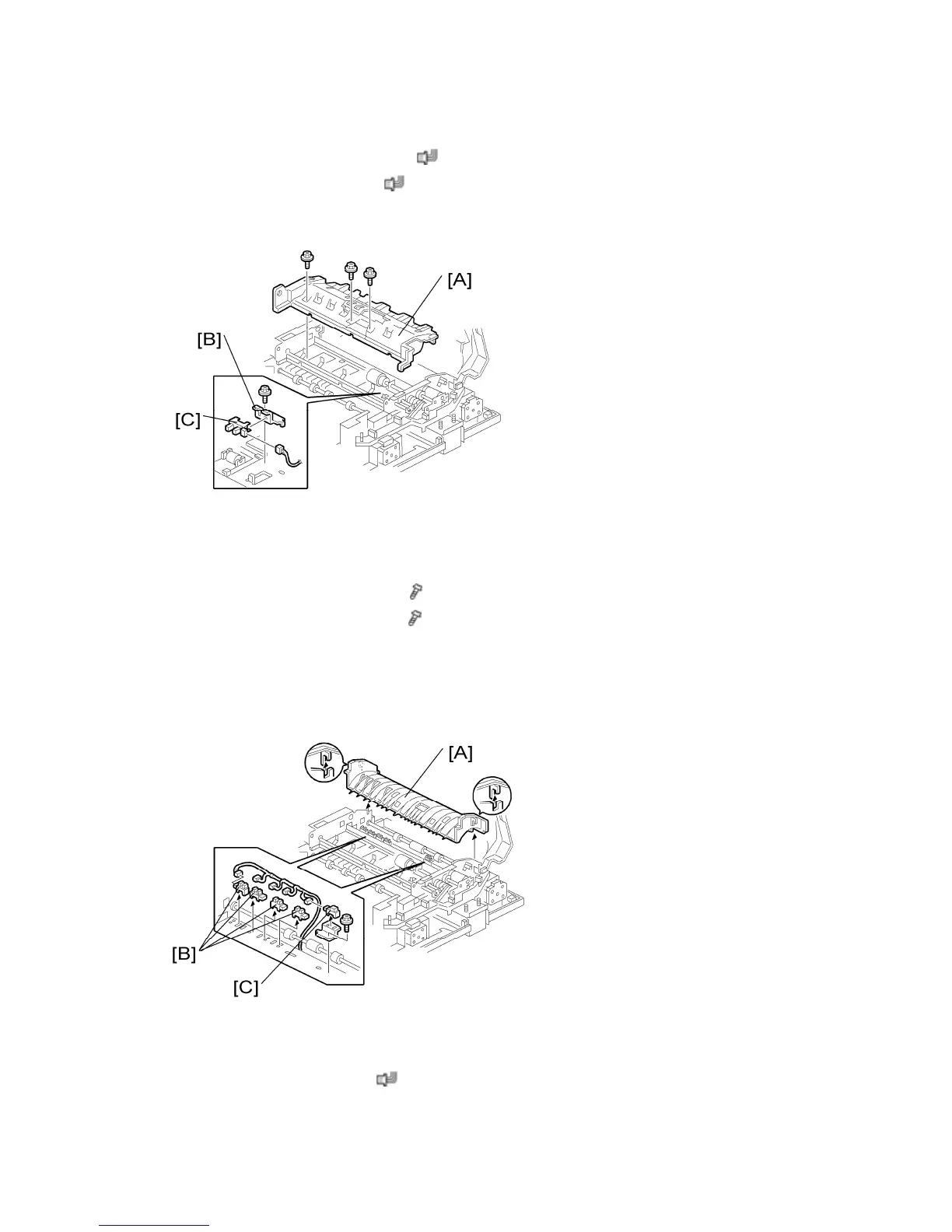

1.3.3 ORIGINAL SET SENSOR
1. Open the left cover.
2. Original feed unit (see the "Original Feed Unit")
3. Original Tray (see the "Original Tray")
4. Original feed-in guide plate [A] (
x 3).
5. Original set sensor bracket [B] (
x 1)
6. Original set sensor [C]
1.3.4 ORIGINAL SIZE SENSORS AND SKEW CORRECTION
SENSOR
1. Original feed-in guide plate (see "Original Set Sensor")
2. Original turn guide plate [A] (hook x 1).
3. Original width sensors [B] (
x 1 each) and skew correction sensor [C] with bracket
To Next Page
