Duplex Unit
SM 4-115 D037/D038/D040/D041
Replacement
& Adjustment
4.14 DUPLEX UNIT
4.14.1 DUPLEX UNIT

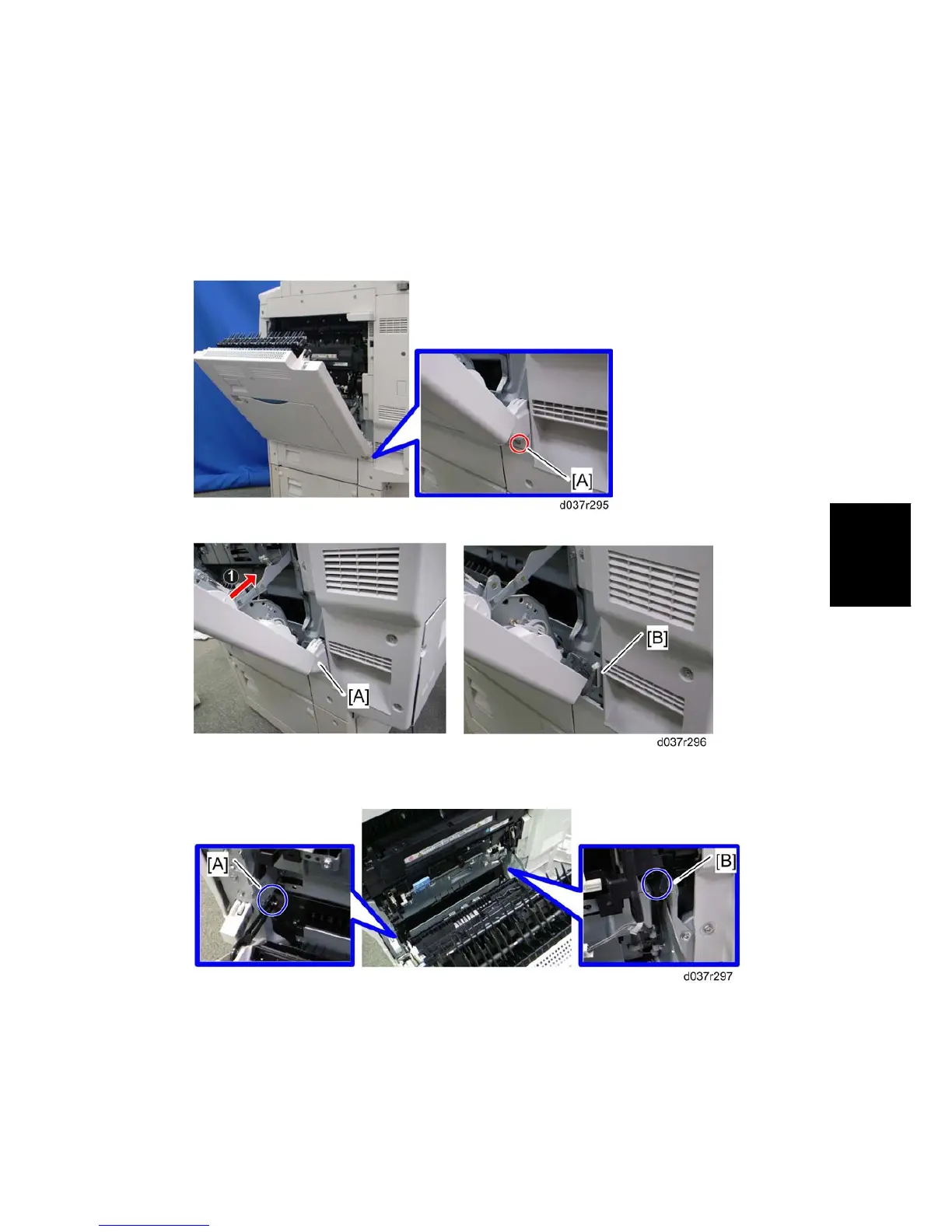

1. Open the duplex unit.
2. Remove the screw [A].
3. Move the duplex unit in the direction shown by , and remove the hook [A].
4. Disconnect the harness [B].
5. Release the front and rear arms [A], [B] ( x 1 each).
