Scanner Unit
D037/D038/D040/D041 4-30 SM
9. Pulley [C]

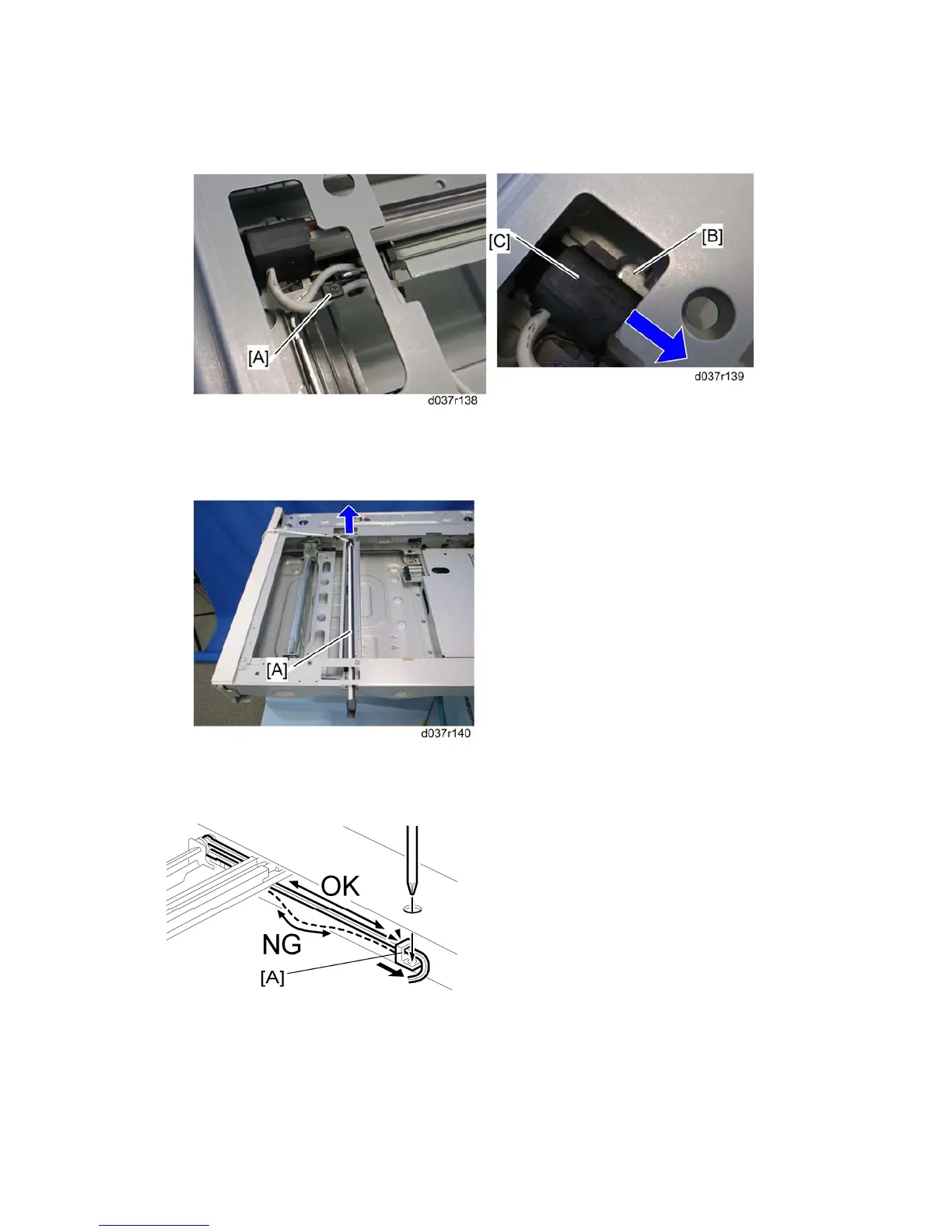

10. Release the cable clamp [A] (one hook under the cable clamp) at the rear edge of the
exposure lamp.
11. Hold down the snap [B], and then slide the exposure lamp [C] to the front side.
12. Exposure lamp [A]
Reassembling
Run the cable so there is no slack. Slide the adjustor clamp [A] to adjust the cable slack.
4.5.4 SCANNER MOTOR
1. Rear cover ( Section: Rear Cover)
