Image Creation
D037/D038/D040/D041 4-58 SM

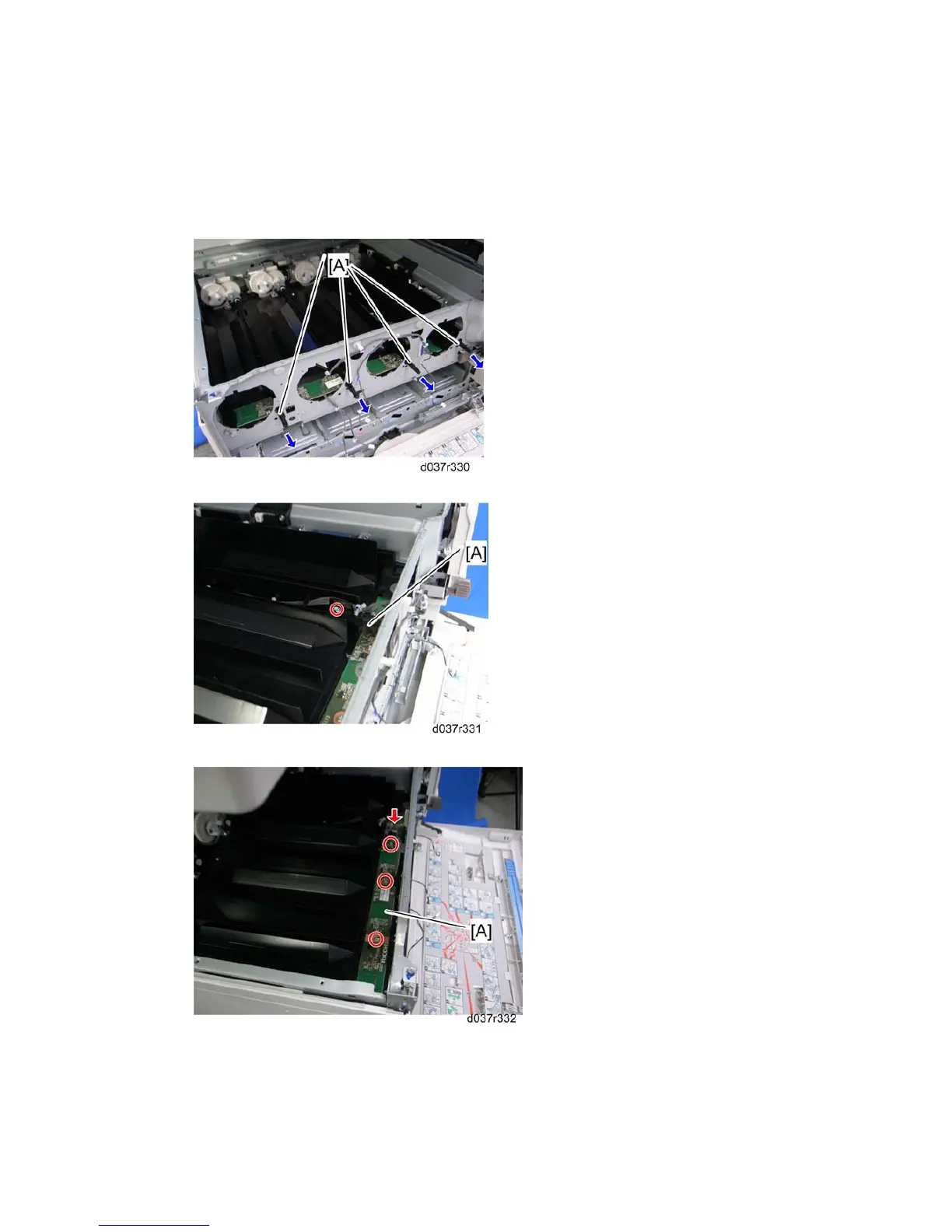

4.7.8 RFID BOARD
1. All toner hopper units ( Section: Toner Hopper Unit)
2. Inner tray ( Section: Inner Tray)
3. Toner supply drive shafts [A]
4. Harness cover [A] ( x 1)
5. RFID board [A] ( x 3, = x 1)
