Ricoh Aficio MP C2030 Service Manual

Image Creation
SM 4-55 D037/D038/D040/D041
Replacement
& Adjustment

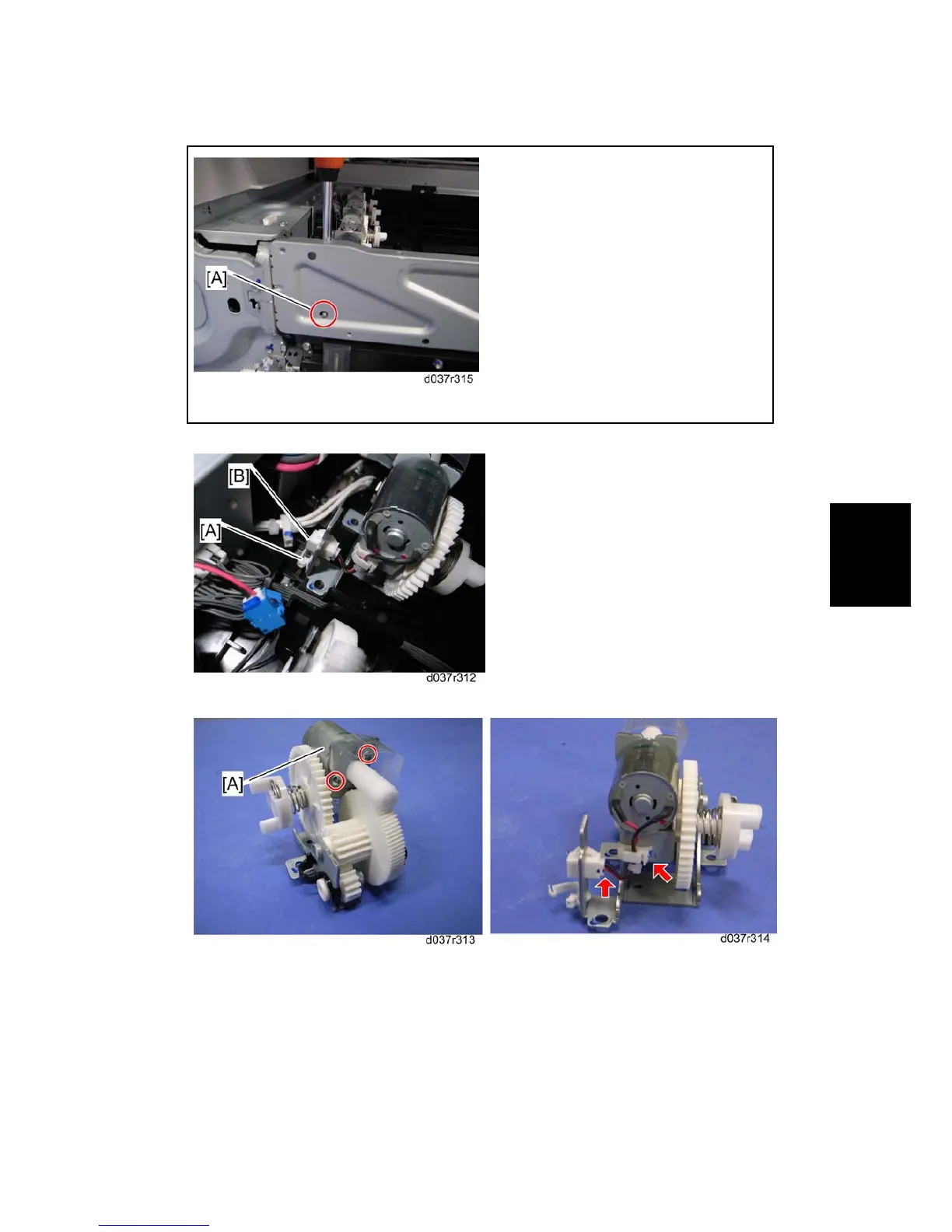

2) Check the screw position [A] as shown above.
8. Release the clamp [A], and then disconnect the harness [B].
9. Toner supply motor [A] (= x 1,  x 1,  x 2)
4.7.5 TONER COLLECTION MOTOR
1. Open the front door.
2. PCDU toner collection bottle ( Section: PCDU Toner Collection Bottle)
3. PCDU: Yellow ( Section: PCDU (Photo Conductor and Development Unit))
