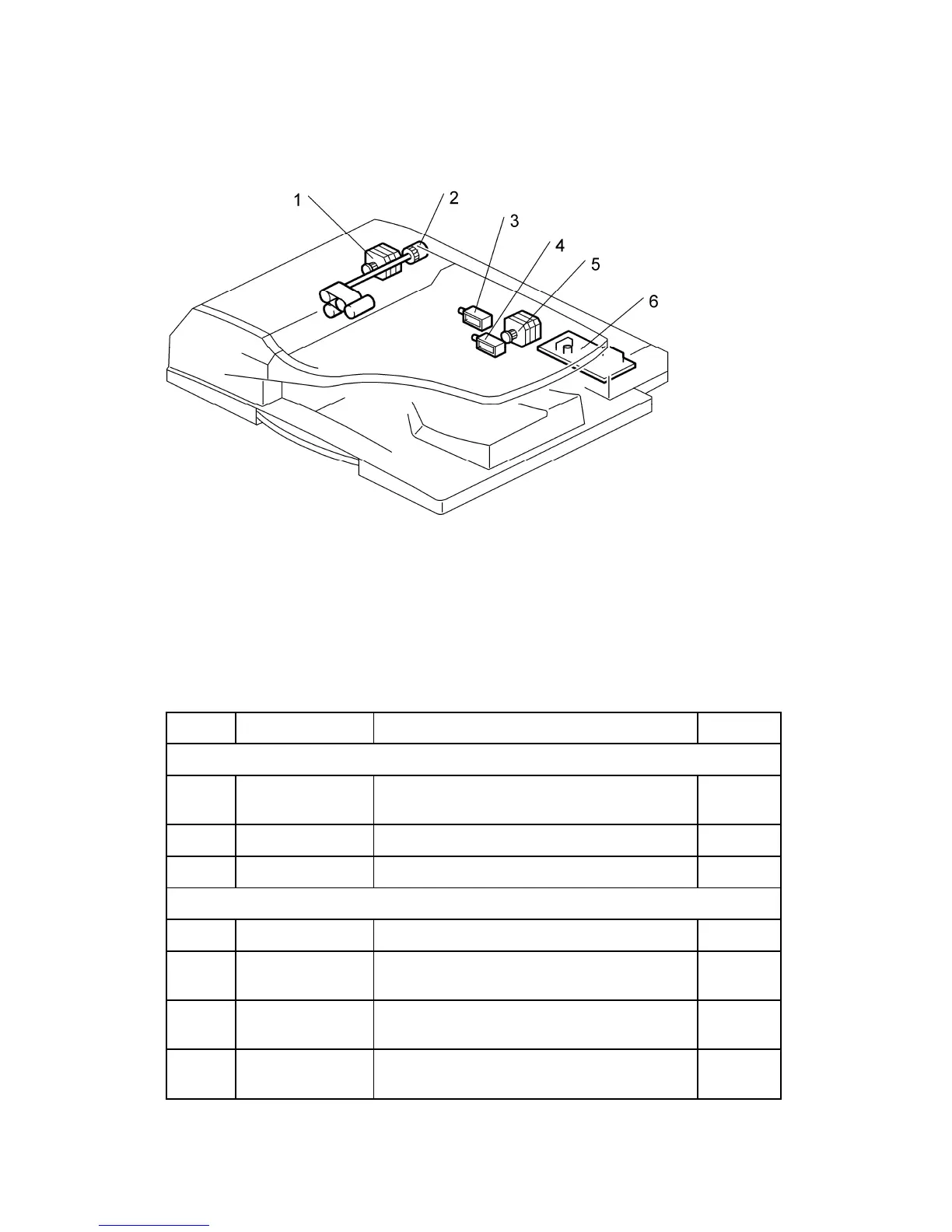

Component Layout
D366 14 SM
Drive Components
1. Transport Motor
2. Feed Clutch
3. Pick-up Solenoid
4. Inverter Solenoid
5. Feed Motor
6. Main Board
Electrical Component Descriptions
Symbol Name Function Index No.
Motors
M1 Feed
Drives the feed belt, separation, pick-up, and
reverse table rollers.
5
M2 Transport Drives the transport and exit rollers 1
Sensors
S9 DF Position Detects whether the DF is lifted or not. 9
S5 Skew Correction
Detects the leading edge of the original to
turn off the DF feed and transport motors.
2
S8 Registration
Detects the original exposure timing, and
checks for original misfeeds.
3
S10 Cover Sensor
Detects whether the feed-in cover is opened
or not.
4
To Next Page
