Sensors
D429 10 SM

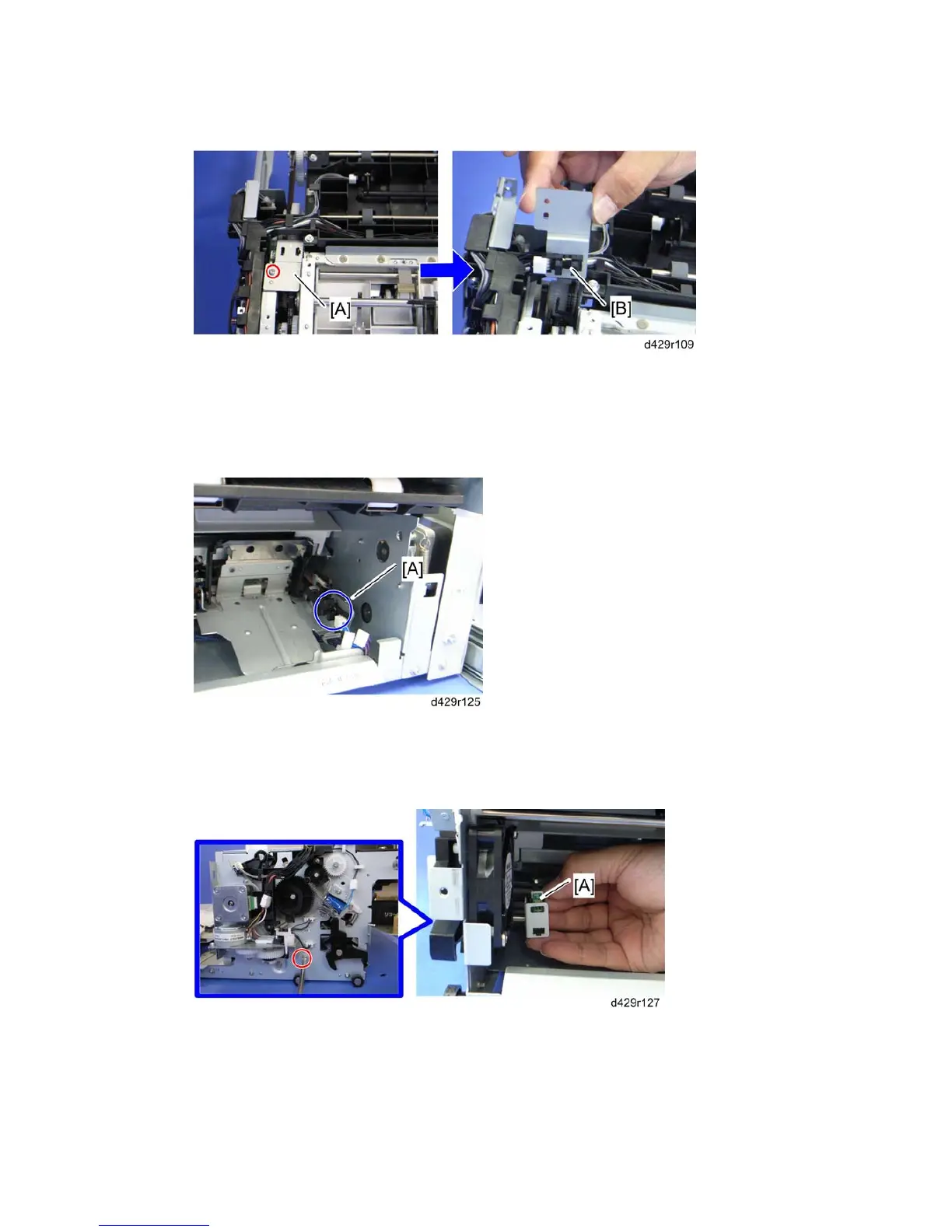

4. Belt roller position sensor with the bracket [A] ( x 1)
5. Belt roller position sensor [B] (hook, x 1)
Stapler Safety Sensor
1. Stapler unit ( Stapler Unit)
2. Stapler safety sensor [A] ( x 1, hook)
Stapler Unit HP Sensor
1. Front cover ( Front Cover)
2. Bracket with stapler unit HP sensor ( x 1)
3. Stapler unit HP sensor [A] (hook, x 1)
