Main Board
SM 13 D429
D429 Internal
Finisher
Type C2550
1.6 MAIN BOARD
1. Rear cover (Rear, Left Rear and Rear Inner Cover)
2. Left rear cover (Rear, Left Rear and Rear Inner Cover)

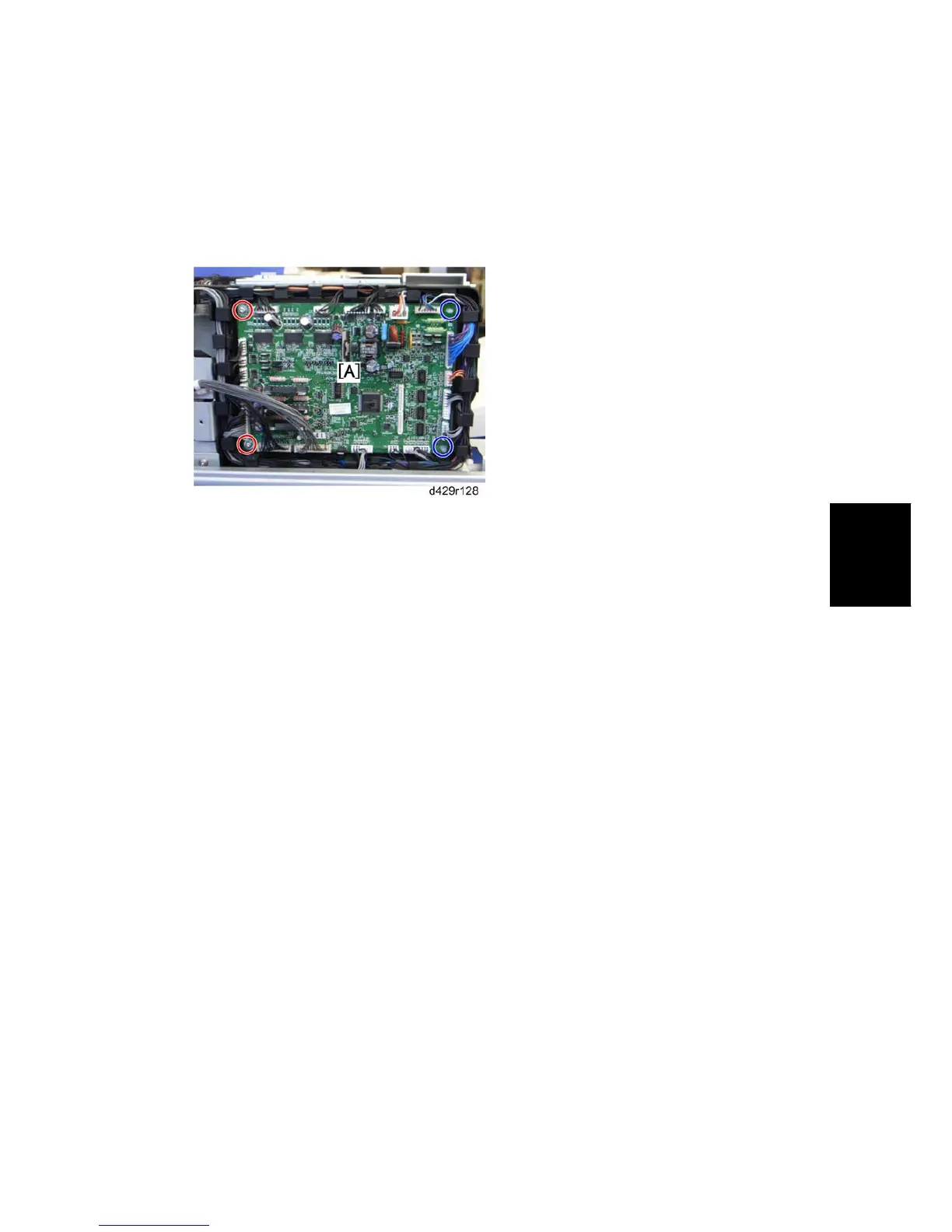

3. Main board ( x 2, clip x 2, x all)
