Ricoh Aficio MP C2030 Service Manual

Stapler Unit
SM 7 D429
D429 Internal
Finisher
Type C2550

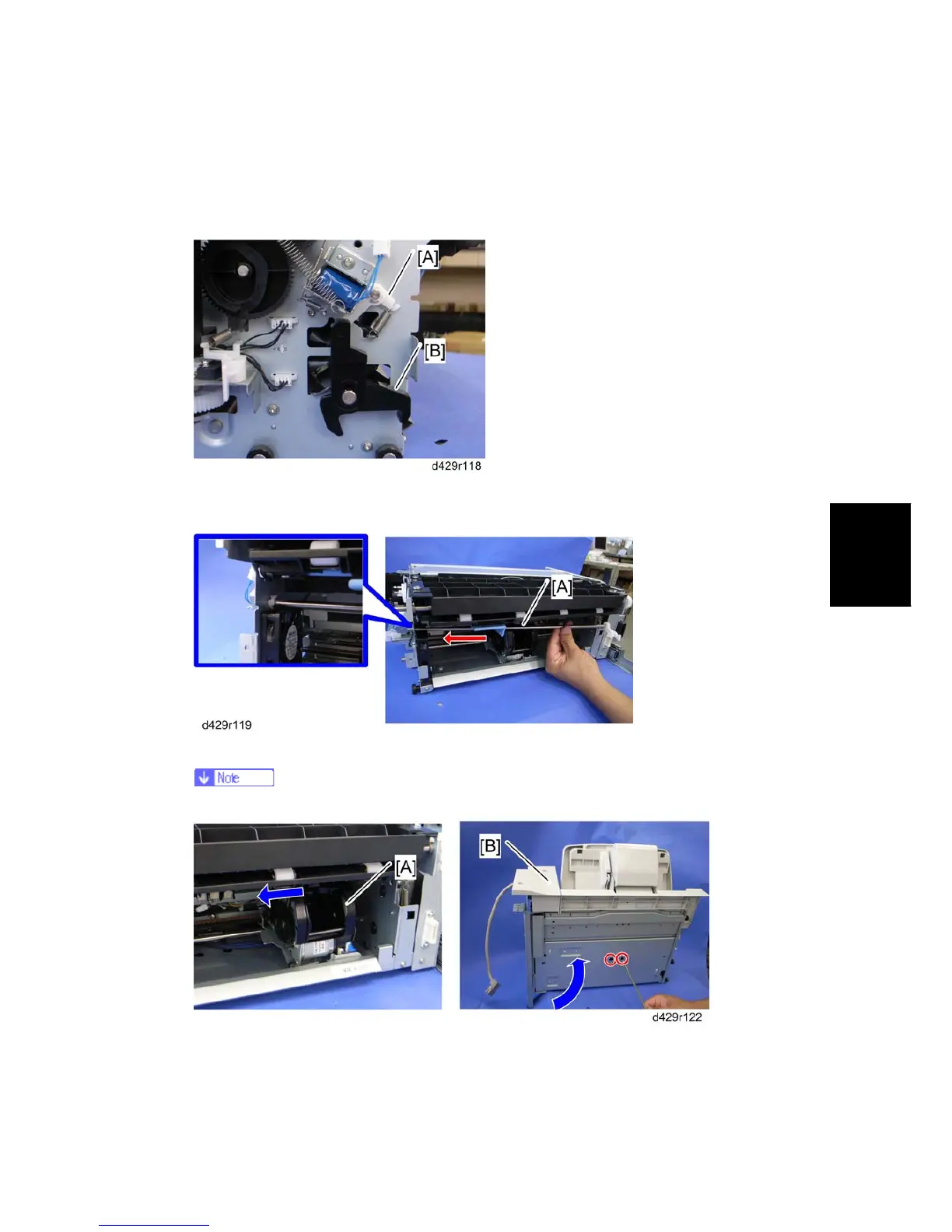

1.3 STAPLER UNIT
1. Front cover ( Front Cover)
2. White lever [A] (spring x 1, hook)
3. Black lever [B] (hook)
4. Shaft [A] ( x 1)
 Remove the green stapler cartridge first, to make this step more easy.
5. Move the stapler unit [A] to the center.
6. Stand the internal finisher [B] as shown above.
7. Remove two screws.
