Electrical Components
D037/D038/D040/D041 4-130 SM

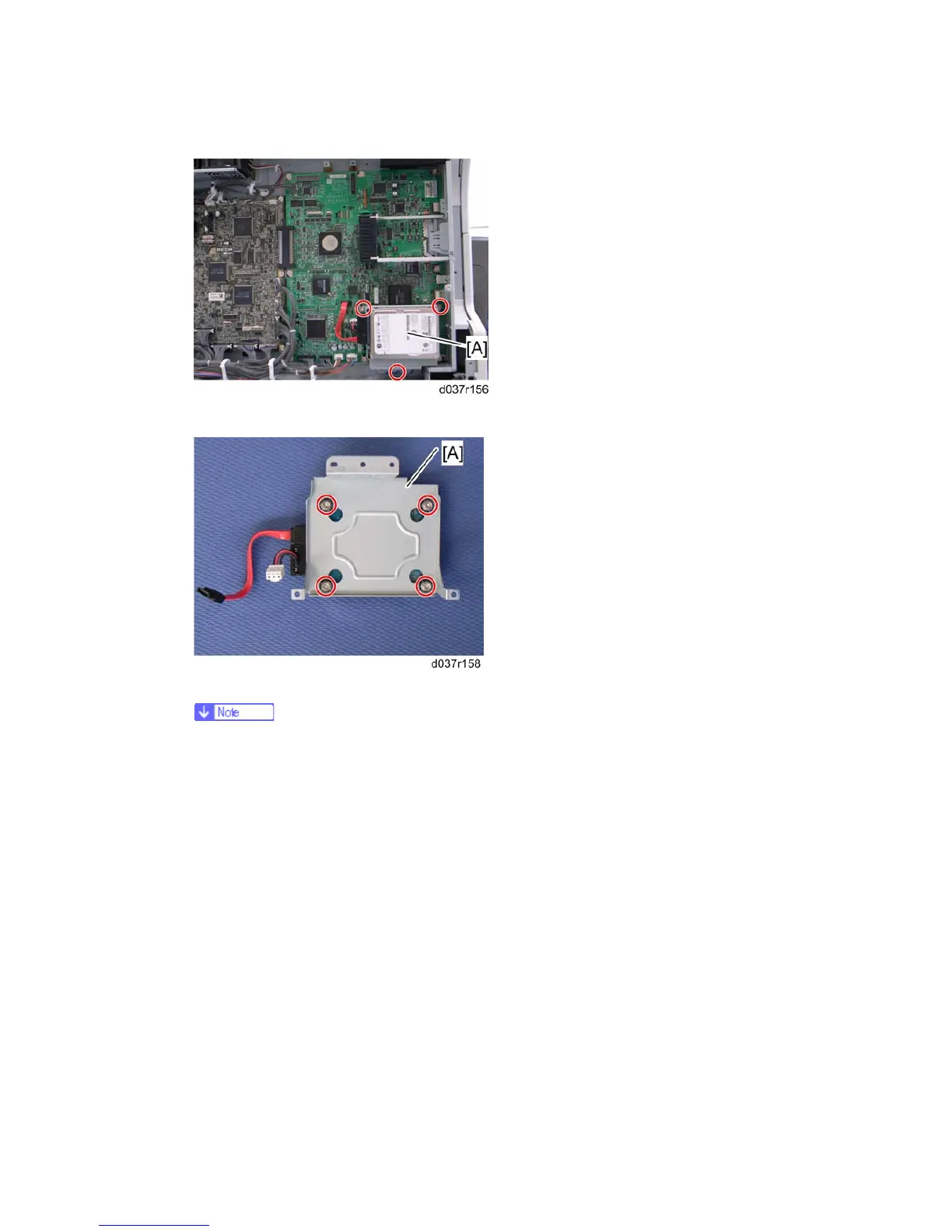

3. HDD assembly [A] ( x 3, x 2 from the controller board).
4. HDD [A] ( x 4, x 2).
Reconnect the harnesses to the controller board.
4.15.6 CONTROLLER BOX FAN
1. Rear cover ( Section: Rear Cover)
2. Controller box cover ( Section: Controller Box Cover)
