Punch Unit (D390)
D037/D038/D040/D041 2-48 SM
2.13 PUNCH UNIT (D390)

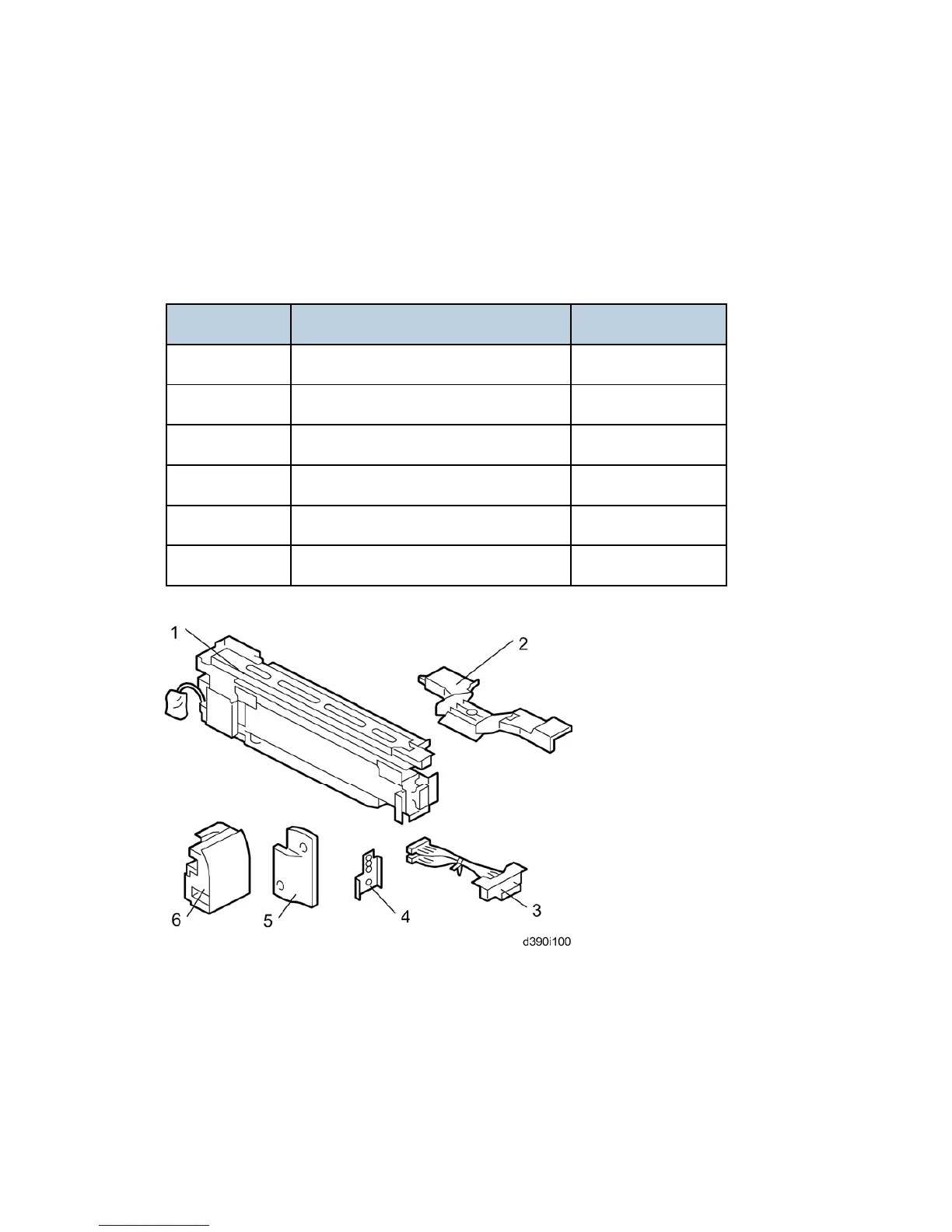

2.13.1 COMPONENT CHECK
Check the quantity and condition of the components against the following list.
No. Description Q’ty
1 Punch Unit 1
2 Output Tray Lower Cover 1
3 Drawer Connector 1
4 Bracket 1
5 Left Frame Cover 1
6 Punch Cover 1
2.13.2 INSTALLATION PROCEDURE
If the internal finisher has not already been installed, skip the ‘Removing the Internal
Finisher’ section, and go to the ‘Preparing the Punch Unit before Installing the Internal
To Next Page
