Image Transfer
D037/D038/D040/D041 4-66 SM

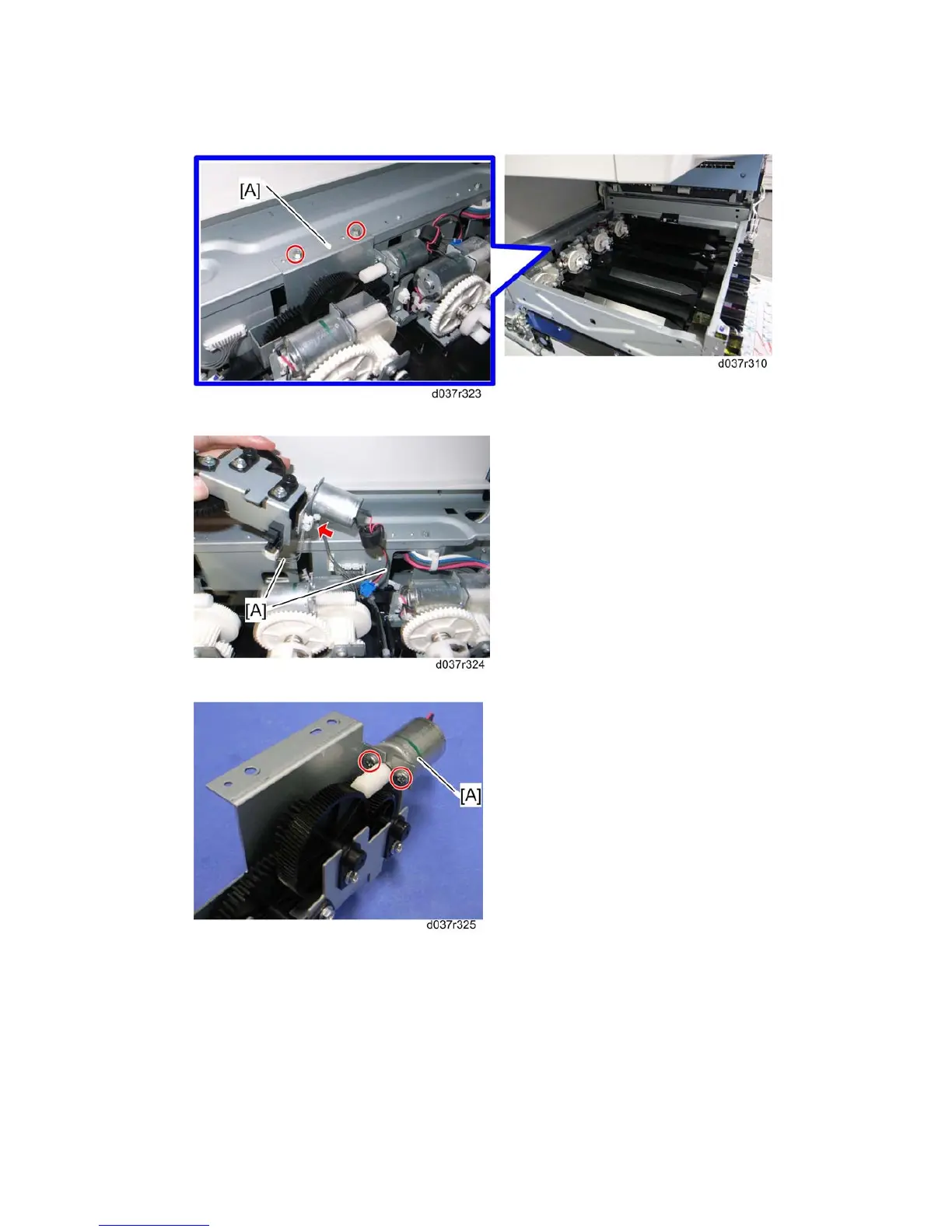

4. Take aside the ITB contact motor unit [A] ( x 2)
5. Disconnect two harnesses [A], and then remove the ITB contact motor unit (= x 1)
6. ITB contact motor [A] ( x 2)
4.8.7 ITB CONTACT SENSOR
1. ITB contact motor unit ( Section: ITB Contact Motor)
