Common Procedures
D429 2 SM

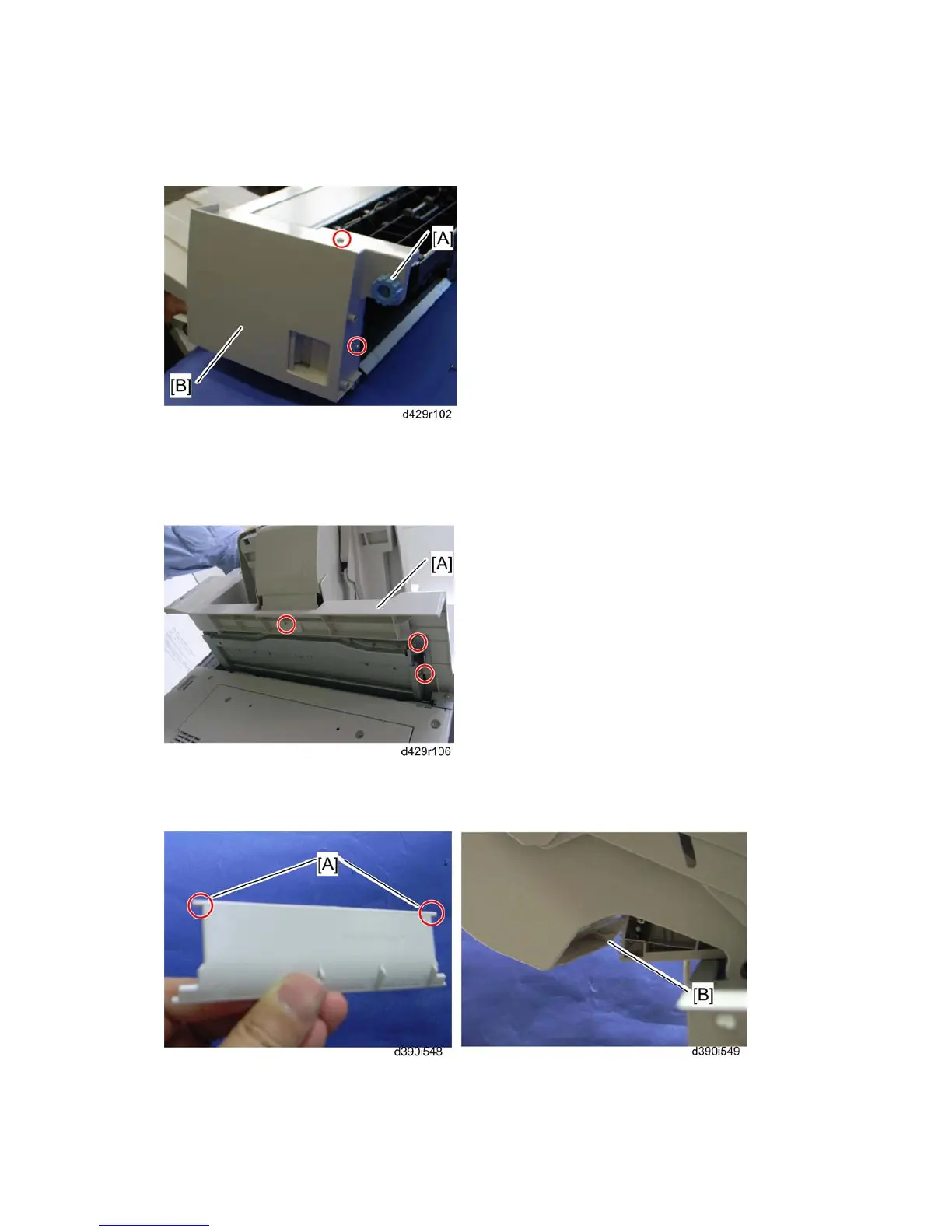

1.1.2 FRONT COVER
1. Remove the knob [A]
2. Front cover [B] ( x 2)
1.1.3 OUTPUT TRAY LOWER COVER
1. Output tray lower cover [A] ( x 3)
When installing the output tray lower cover
1. The two projections [A] of the output tray lower cover (this plate is actually attached to
