Paper Exit
SM 4-113 D037/D038/D040/D041
Replacement
& Adjustment
4. Move the sensor assembly [A] to the cutout [B], and then remove it (= x1, x 1)

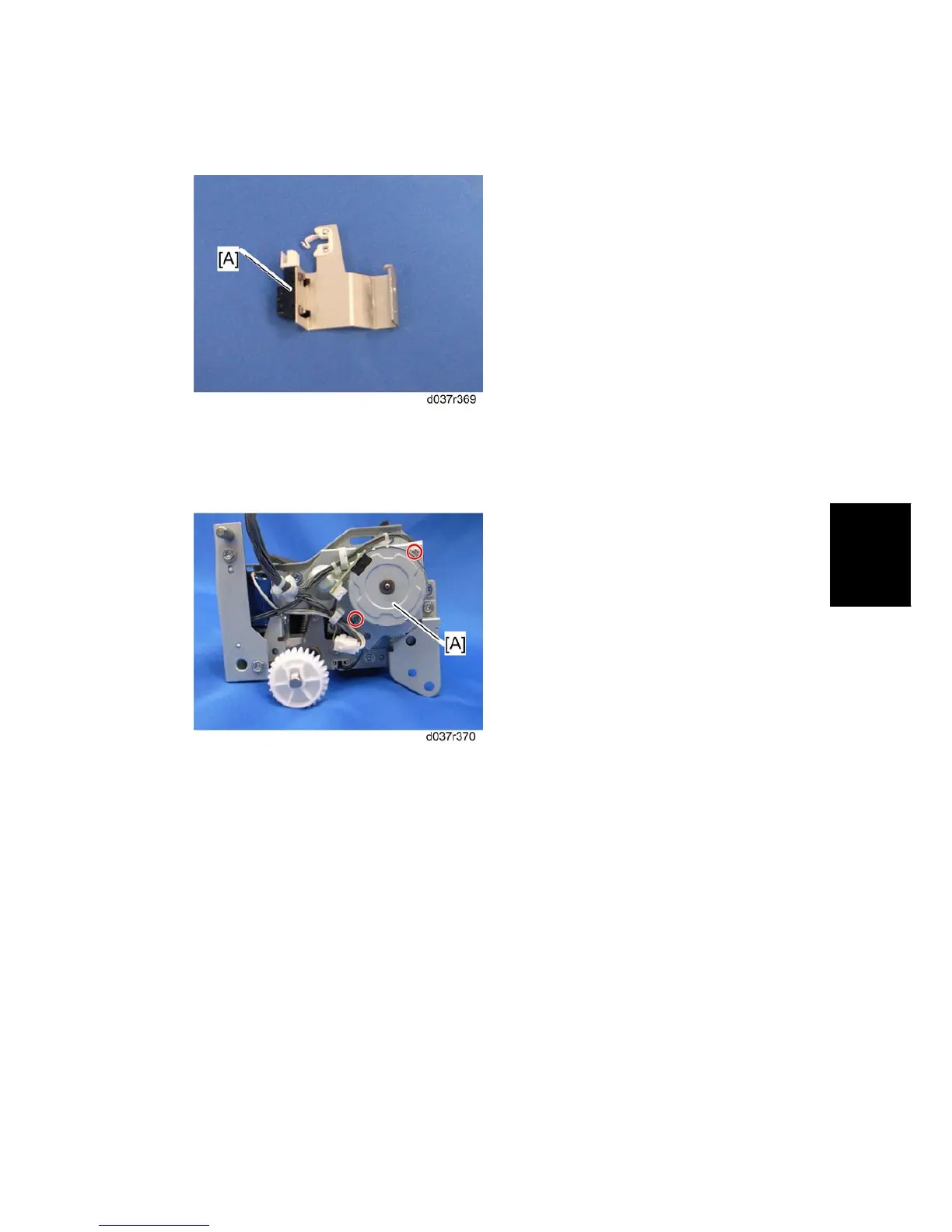

5. Inverter sensor [A] (hooks)
4.13.6 INVERTER MOTOR
1. Paper exit unit ( Section: Paper Exit Unit)
2. Inverter motor [A] ( x 2, x 1)
