Duplex Unit
D037/D038/D040/D041 4-124 SM
4.14.10 BY-PASS PAPER END SENSOR
1. By-pass tray unit ( Section: By-Pass Tray Unit)

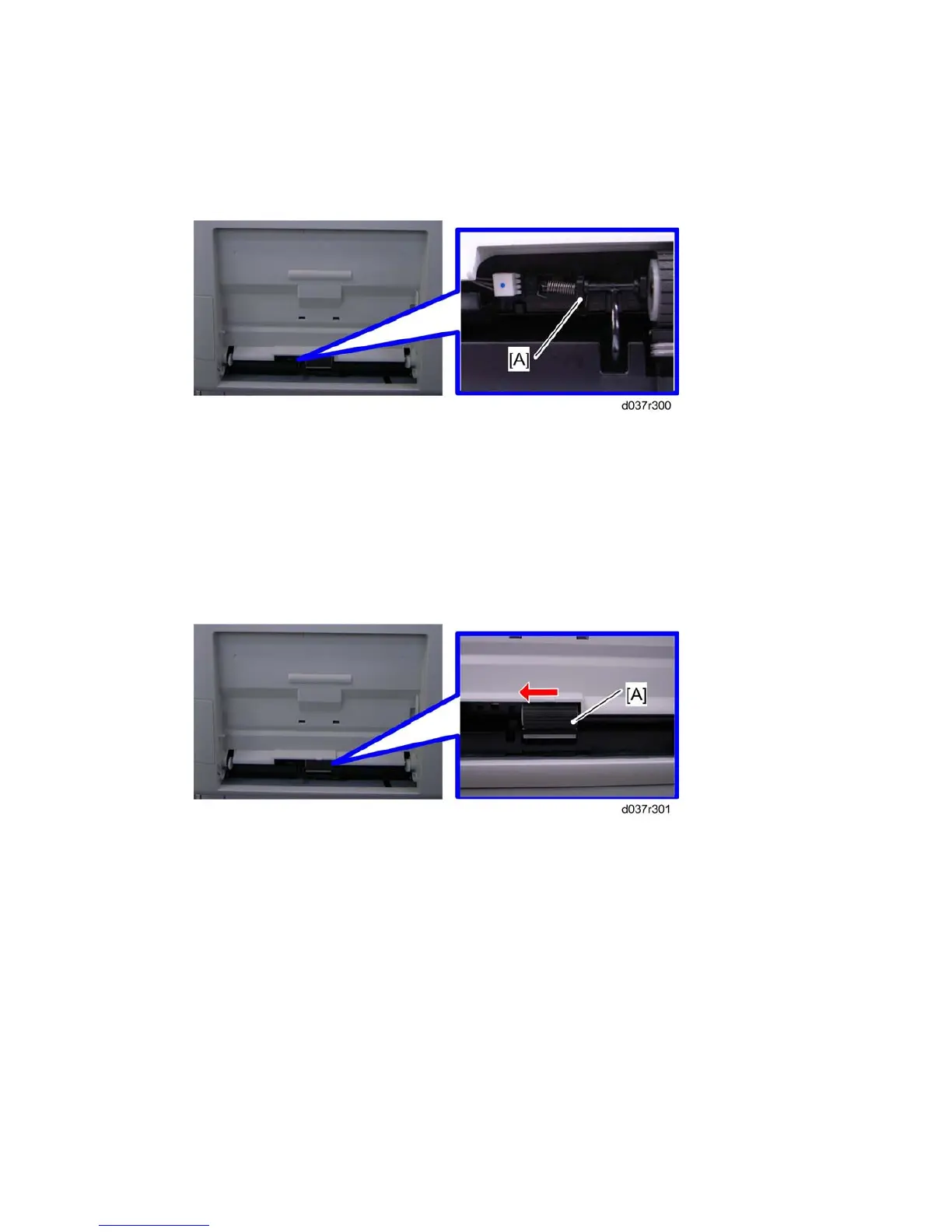

2. By-pass paper end sensor [A] ( x 1, hook)
Reinstalling the By-pass Paper End Sensor
Reinstall the right hook first and then the left hook using a flat-head screw driver or
similar tool.
4.14.11 BY-PASS FEED ROLLER
1. By-pass tray unit ( Section: By-Pass Tray Unit)
2. By-pass feed roller [A] (hook)
4.14.12 BY-PASS TRAY HP SENSOR
1. Open the by-pass tray unit.
2. Open the duplex unit.
