Image Transfer
D037/D038/D040/D041 4-60 SM

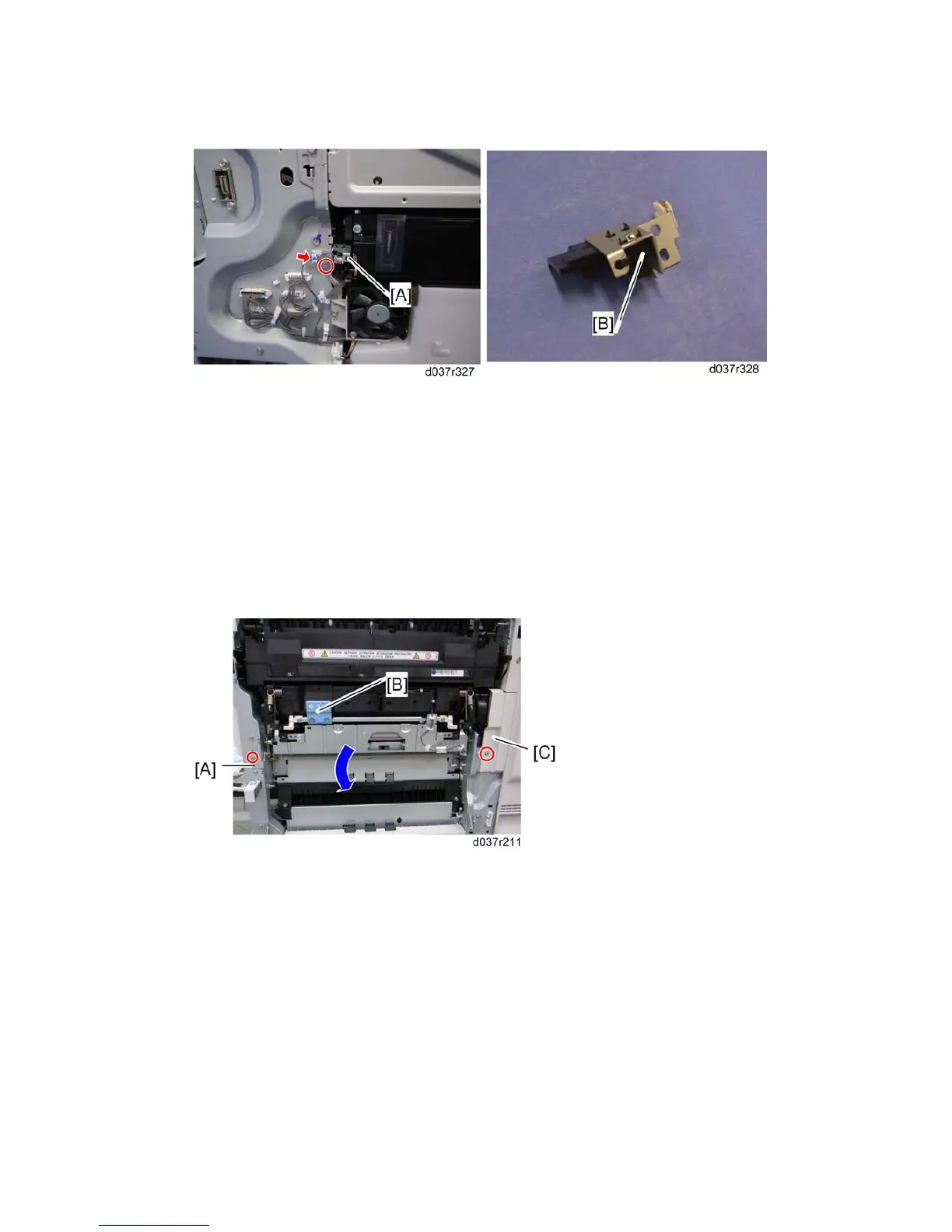

2. Bottle full sensor assembly [A] ( x 1, = x 1, x 1)
3. ITB toner collection bottle full sensor [B] (hooks)
4.8.3 ITB (IMAGE TRANSFER BELT) UNIT
1. Left cover ( Section: Left Cover)
2. ITB cleaning unit ( Section: ITB Cleaning Unit)
3. PCU toner collection bottle ( Section: PCDU Toner Collection Bottle)
4. Unlock the ITB lock lever ( Section: Inner Right Cover).
5. Duplex unit ( Section: Duplex Unit)
6. Hinge bracket [A] ( x 1)
7. Pull the lever [B] to open the paper transfer unit.
8. Harness cover [C] ( x 1)
To Next Page
