Ricoh Aficio MP C2030 Service Manual

Electrical Components
SM 5 D366
ARDF DF3030
D366
1.3 ELECTRICAL COMPONENTS

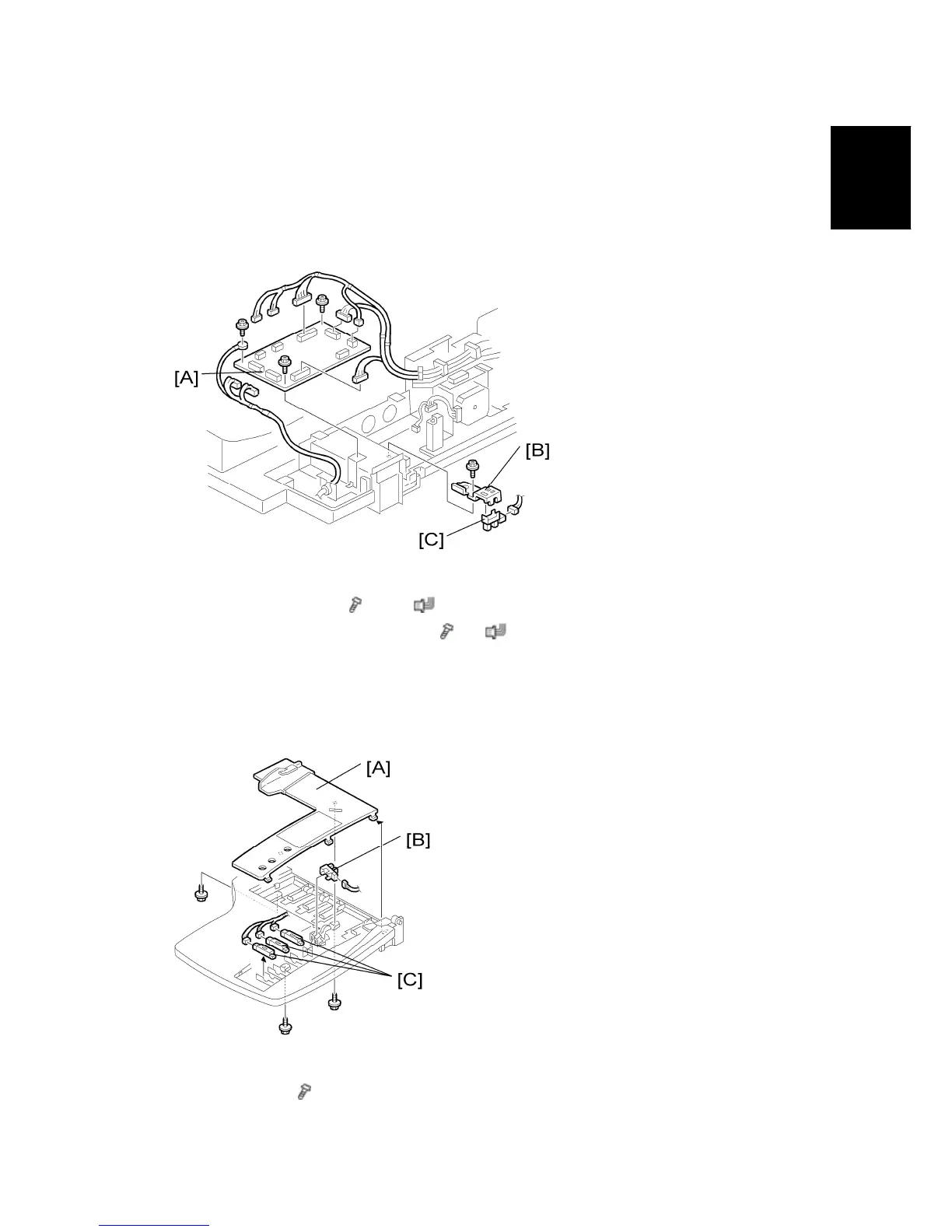

1.3.1 ARDF DRIVE BOARD AND DF POSITION SENSOR
1. Rear cover (see "Rear Cover")
2. ARDF drive board [A] (
x 3, all s)
3. DF position sensor with bracket [B] (
x 1, x 1)
4. DF position sensor [C] (hook x 2)
1.3.2 ORIGINAL LENGTH SENSORS AND TRAILING EDGE
SENSOR
1. Original Tray (see "Front Cover and Original Tray")
2. Tray cover [A] (
x 3)
