Exterior Covers
SM 4-19 D037/D038/D040/D041
Replacement
& Adjustment

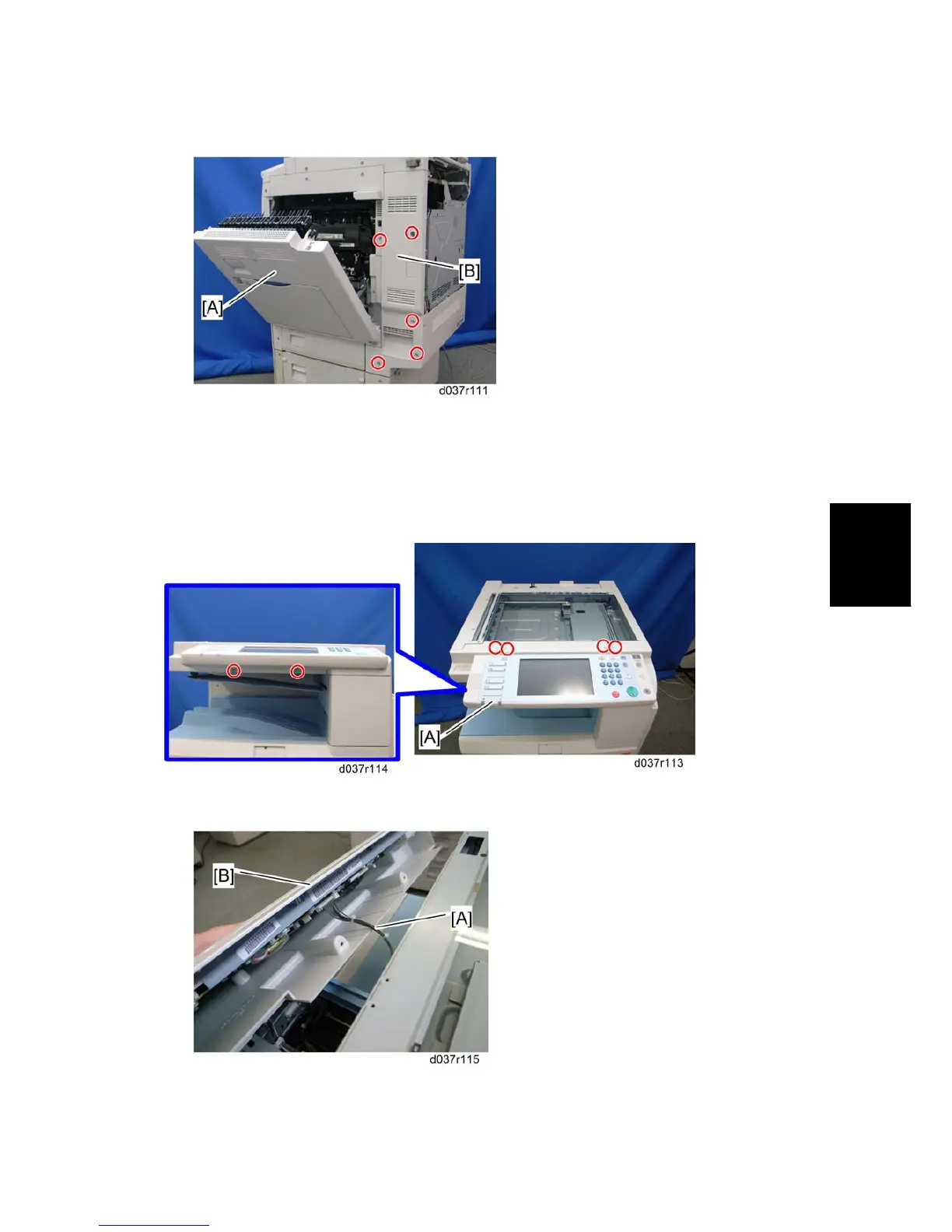

2. Open the duplex unit [A].
3. Right rear cover [B] ( x 5)
4.4.9 OPERATION PANEL
For D038/D041
1. Remove six screws on the operation panel [A].
2. Slide the operation panel to the front side.
3. Disconnect the harness [A].
