Scanner Unit
D037/D038/D040/D041 4-28 SM

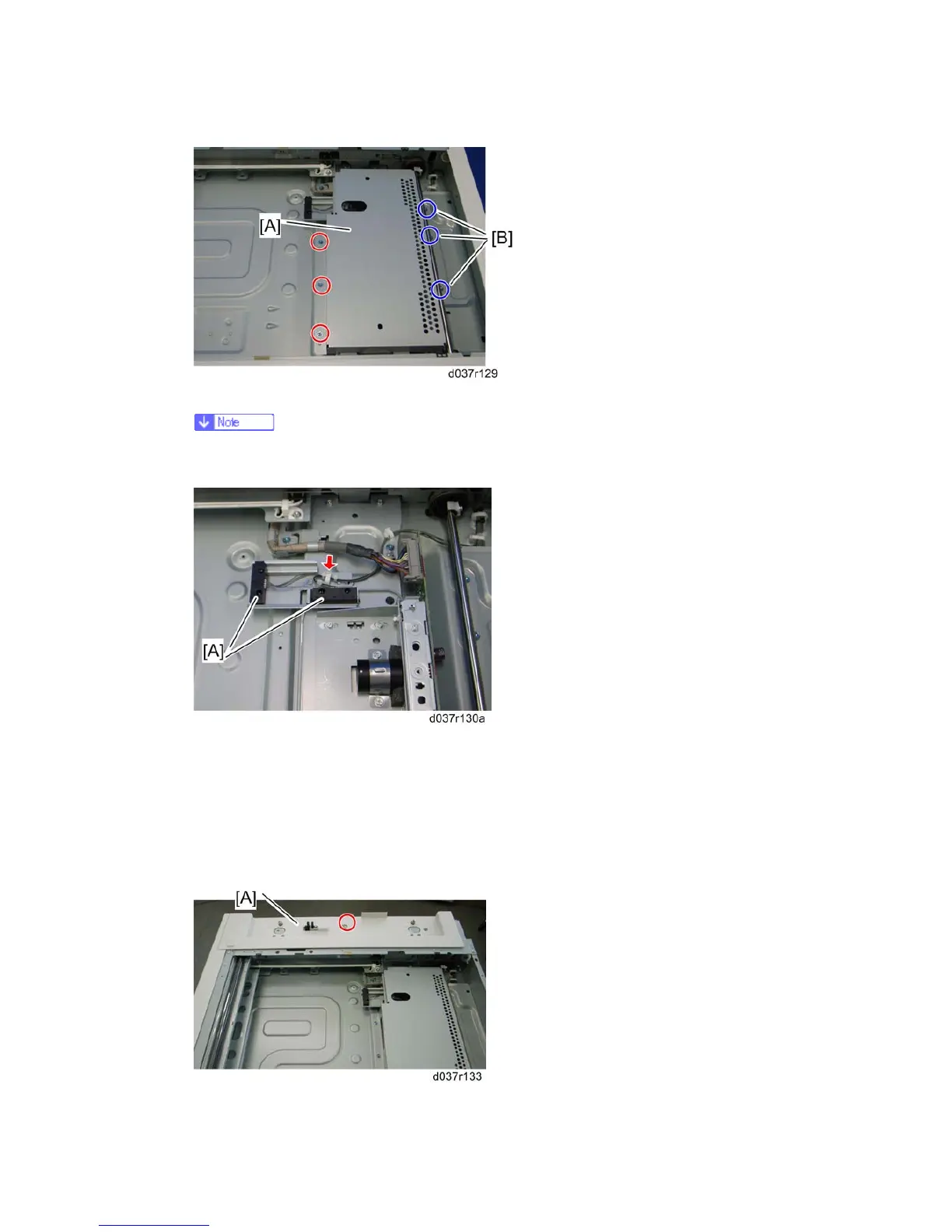

2. SBU cover [A] ( x 6)
 The three screws [B] do not need to be fully removed. Just loosen them to
remove the SBU cover.
3. Original length sensors [A] (hooks, = x1,  x 1 each))
4.5.3 EXPOSURE LAMP
1. Rear cover ( Section: Rear Cover)
2. Operation panel ( Section: Operation Panel)
3. Exposure glass ( Section: Exposure Glass)
