Motors and Clutch
D425 2 SM
1.2 MOTORS AND CLUTCH
 Turn off the main power switch and unplug the machine before beginning any of
the procedures in this section.
1.2.1 PAPER FEED MOTOR
1. Rear Cover ( Rear Cover)
2. Release the harness [B] (= x 2).

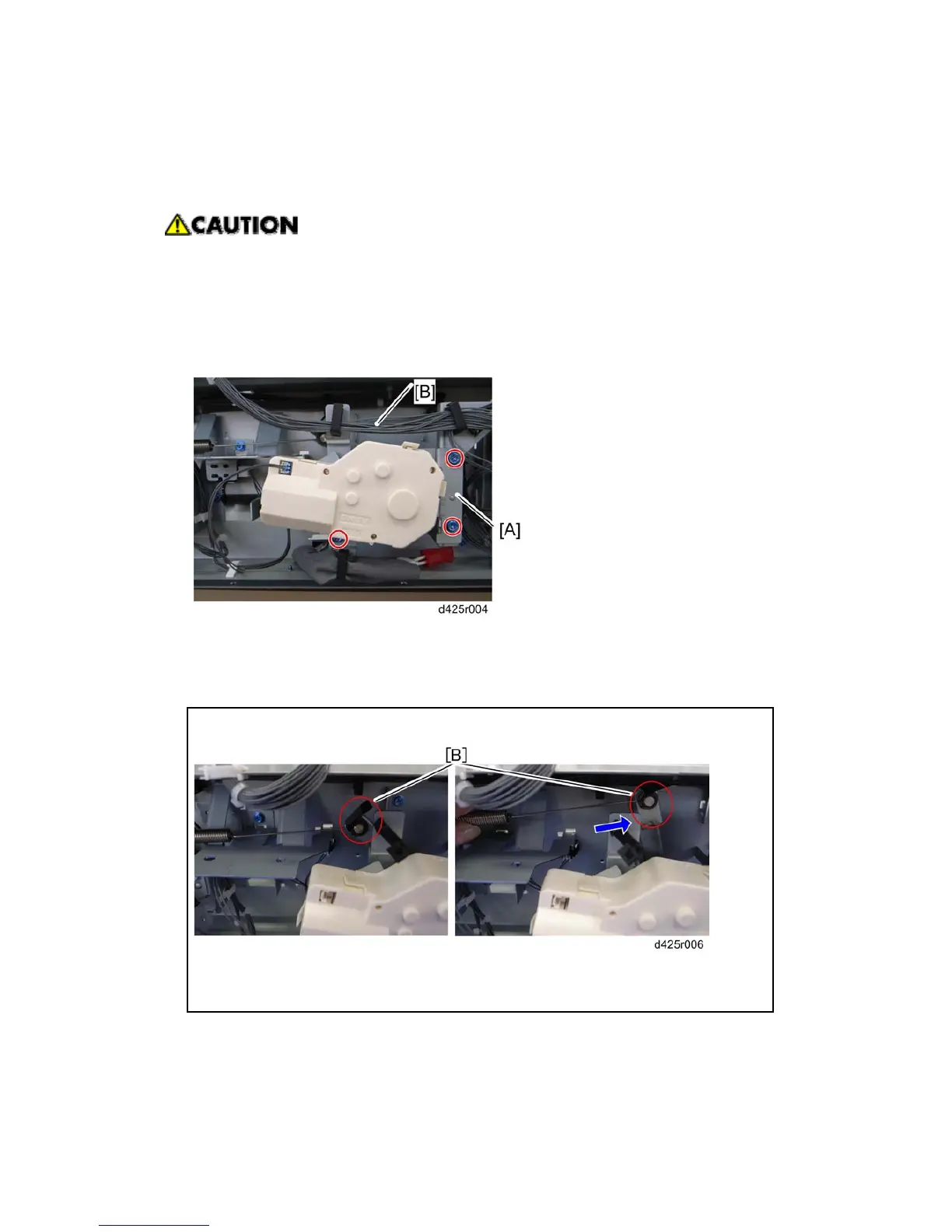

3. Paper feed motor with the bracket [A] ( x 3, = x 2,  x 1))
Note:
Move the lever [B] in the red circle as shown above when removing the paper feed
motor with the bracket.
