Ricoh Aficio MP C2030 Service Manual

Key Counter Interface Unit
SM 2-69 D037/D038/D040/D041
Installaion
2.17 KEY COUNTER INTERFACE UNIT
2.17.1 INSTALLATION PROCEDURE
1. Rear cover ( Section: "Rear Cover" in the "Replacement and Adjustment" section)
2. Rear lower cover ( Section: "Rear Lower Cover" in the "Replacement and
Adjustment" section)

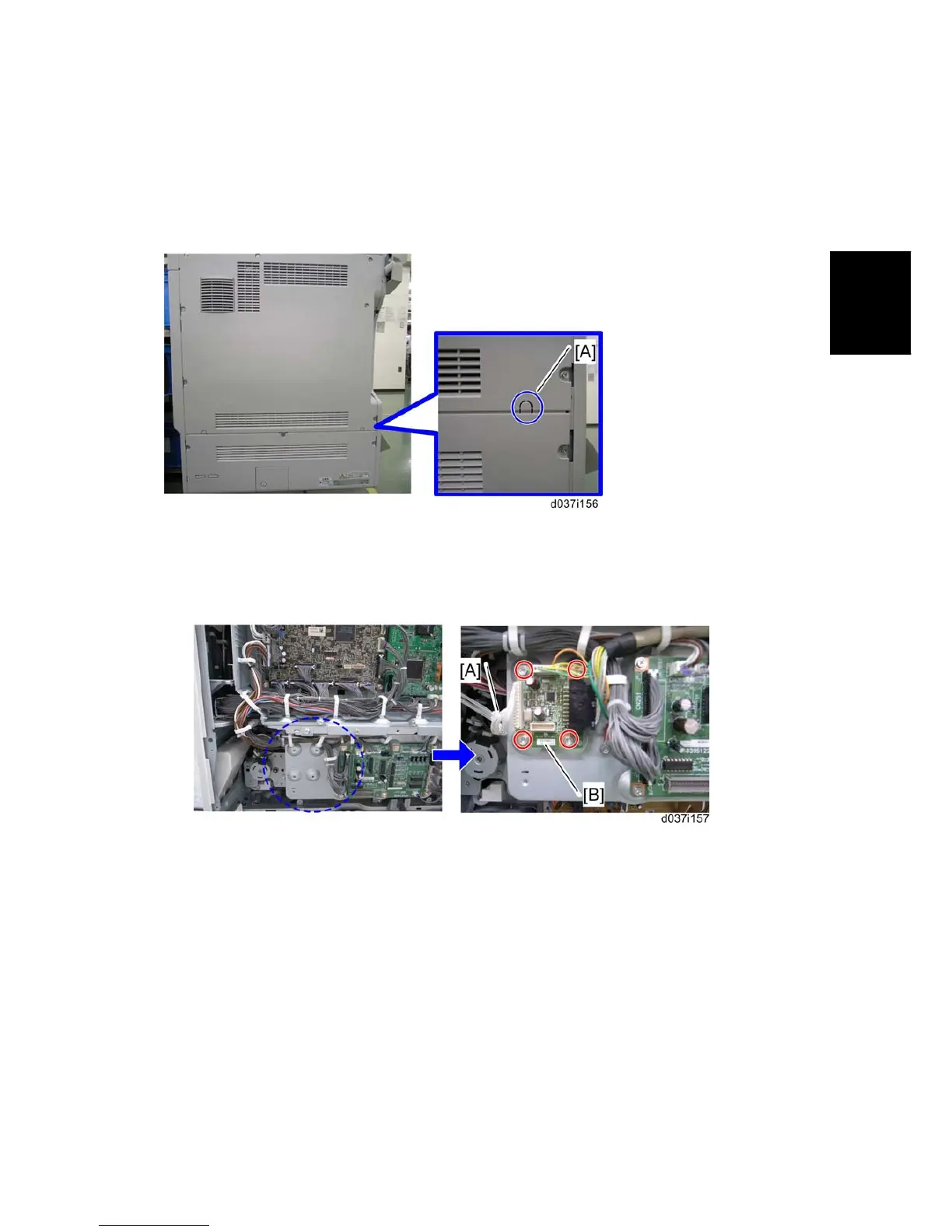

3. Cut off the part [A] of the rear cover.
4. Attach the clamp [A] to the DRB bracket.
5. Install the key counter interface board [B] on the DRB bracket ( x 4).
