Fusing
SM 4-85 D037/D038/D040/D041
Replacement
& Adjustment
4.11.5 EXIT GUIDE PLATE CLEANING PROCEDURE
The exit guide plate requires cleaning maintenance at every 60 K interval.
1. Fusing unit ( Section: Fusing Unit)

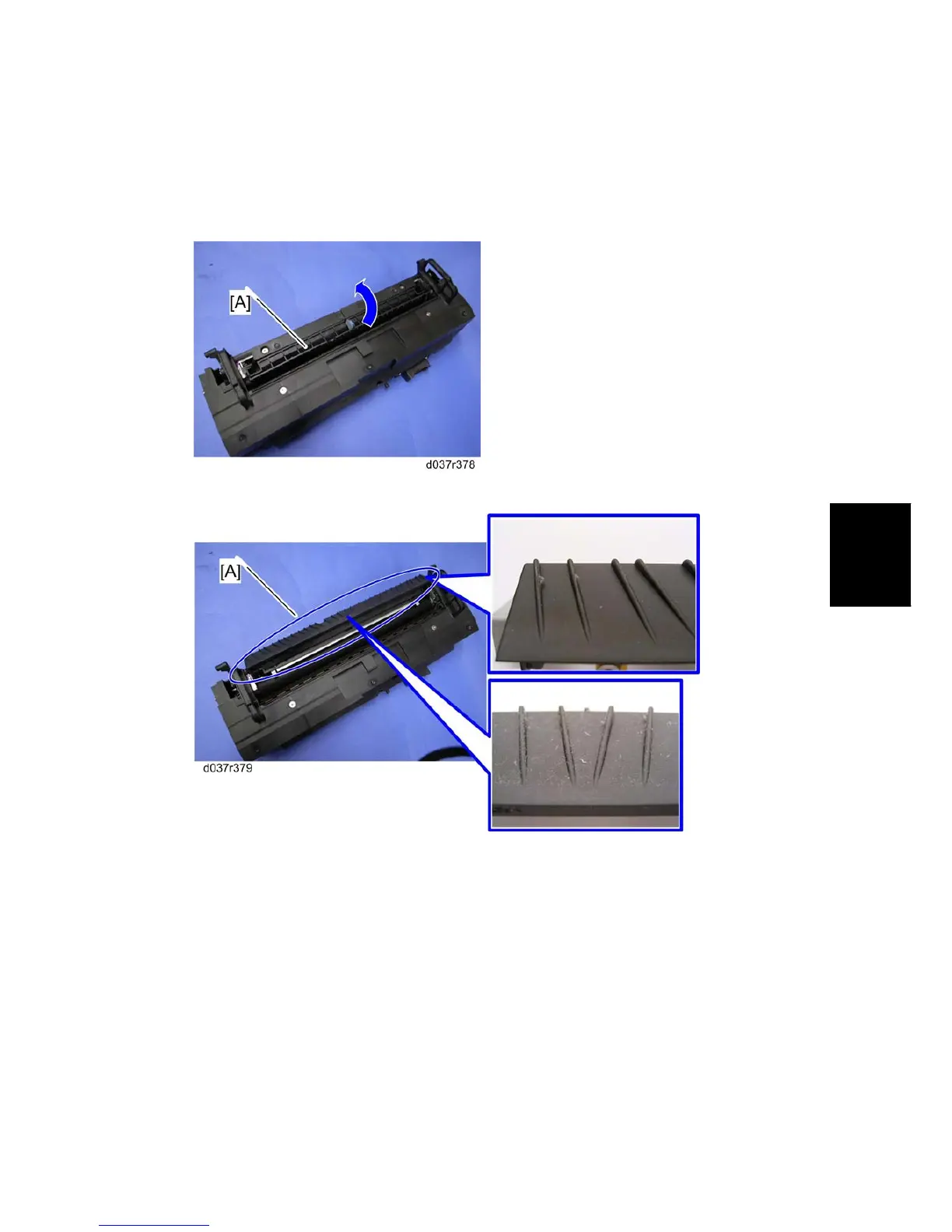

2. Open the exit guide plate [A].
3. Clean the exit guide plate [A] with a cloth moistened with alcohol.
4.11.6 PRESSURE ROLLER FUSING LAMP
1. Fusing unit ( Section: Fusing Unit)
