Electrical Components
SM 4-135 D037/D038/D040/D041
Replacement
& Adjustment

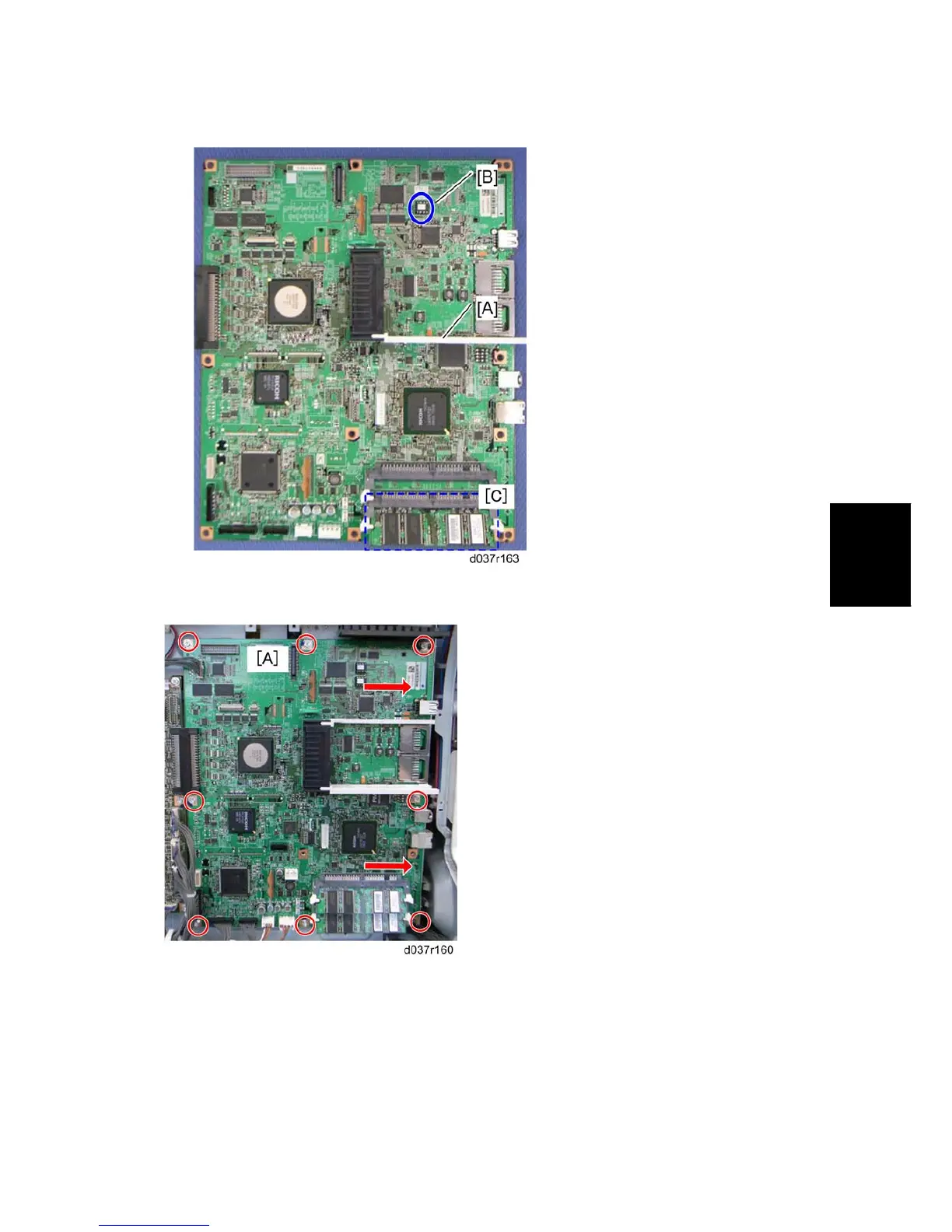

2. Remove the Interface rails [A], NVRAM [B] and RAM-DIMM [C].
For D038/D041
1. HDD ( Section: HDD (Only for D038/D041))
2. i-controller board [A] ( x 8, x all)
