1-Bin Tray Unit (D426)

SM 2-39 D037/D038/D040/D041

Installaion

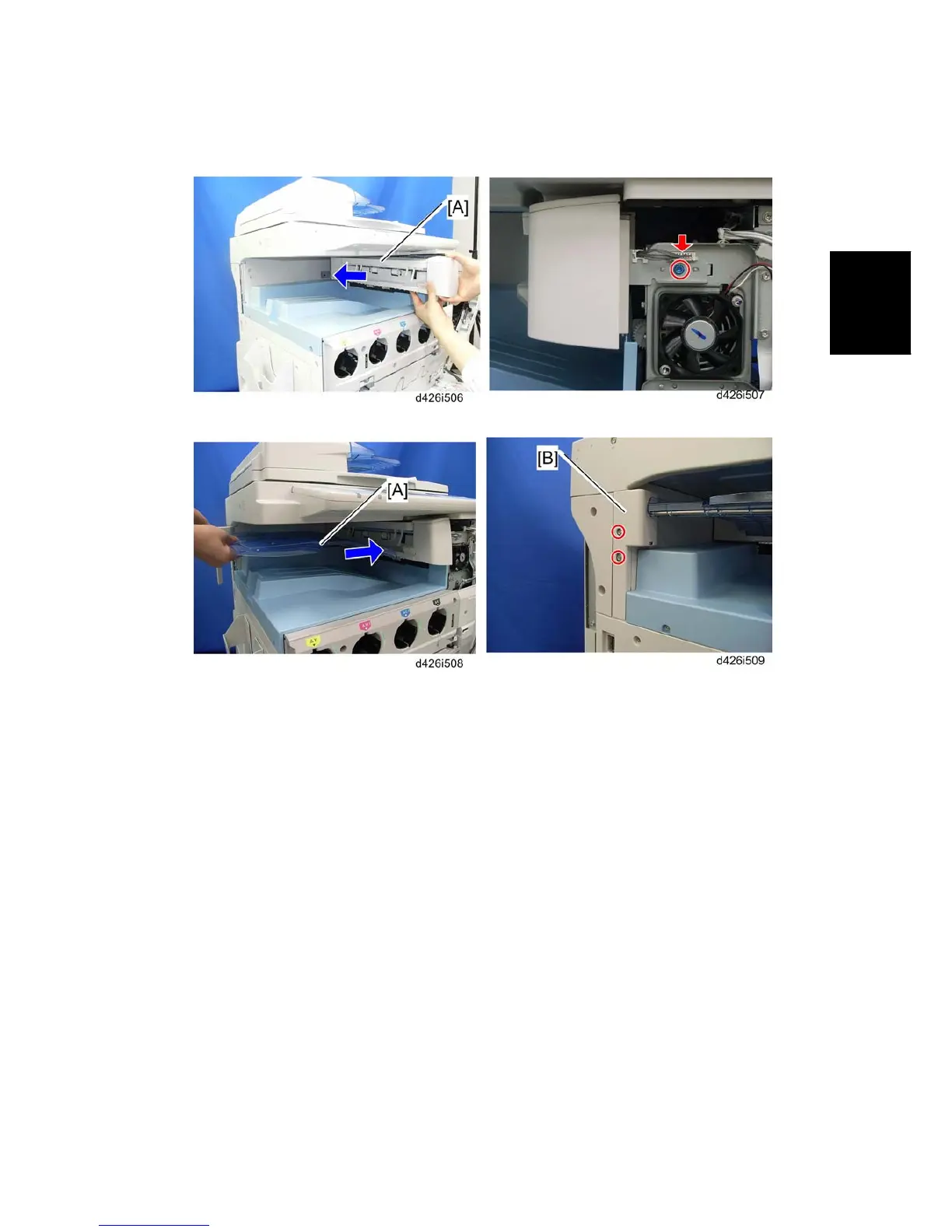

7. Remove the left frame cover [B] ( x 1).

8. Install the 1-bin tray unit [A] ( x 1: M3x6 blue,  x 1).

9. Install the tray [A] (with the tray support bar) in the machine.

10. Attach the tray support cover [B] ( x 2: M3x8 in the accessories and one screw

removed in step 7).

11. Reassemble the machine.

12. Turn on the main power switch of the machine, and check the 1-bin tray unit operation.
