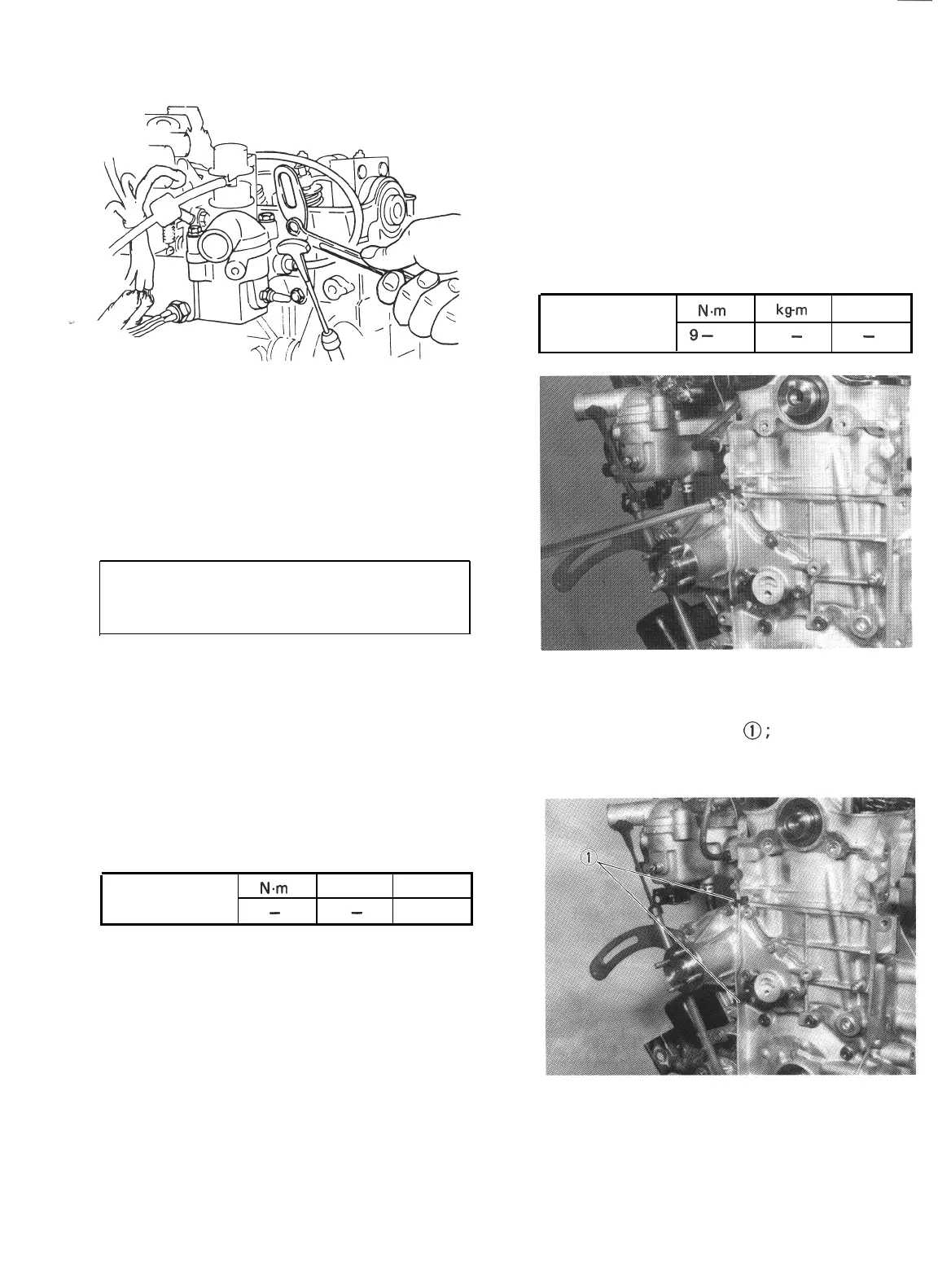

Fig. 3-6-39
4) Connect water hoses to water inlet pipe and
clamp each hose.
Oil Filter
Install oil filter.
CAUTION:
For oil filter installation, refer to P. 1-7 of
this manual.
Exhaust Manifold and Cover
1) Install exhaust manifold gasket to cylinder
head.
Use new gasket.
NOTE:
Clean cylinder head mating surface with gasket
before installation.
2) Install exhaust manifold to cylinder head.
3) Tighten bolts and nuts to specified torque.
Tightening torque N.m
kg-m
lb-ft
for bolts and nuts
18 - 28
1.8 - 2.8 13.5-20.0
Water pump
1) Install water pump gasket to cylinder block.
Use new gasket.
NOTE:
Clean cylinder block mating surface with gasket
before installation.
2) Install water pump to cylinder block.
3) Tighten bolts and nuts to specified torque.
Tightening torque N.m
for water pump
b-m
I b-ft
bolts and nuts
8 - 12
0.9 - 1.2 7.0 - 8.5
,
Fig. 3-6-40
4) Install rubber seats 0; one between oil
pump and water pump and the other be-
tween water pump and cylinder head.
4) Install exhaust manifold cover.
Fig. 3-6-4 1
3-47
