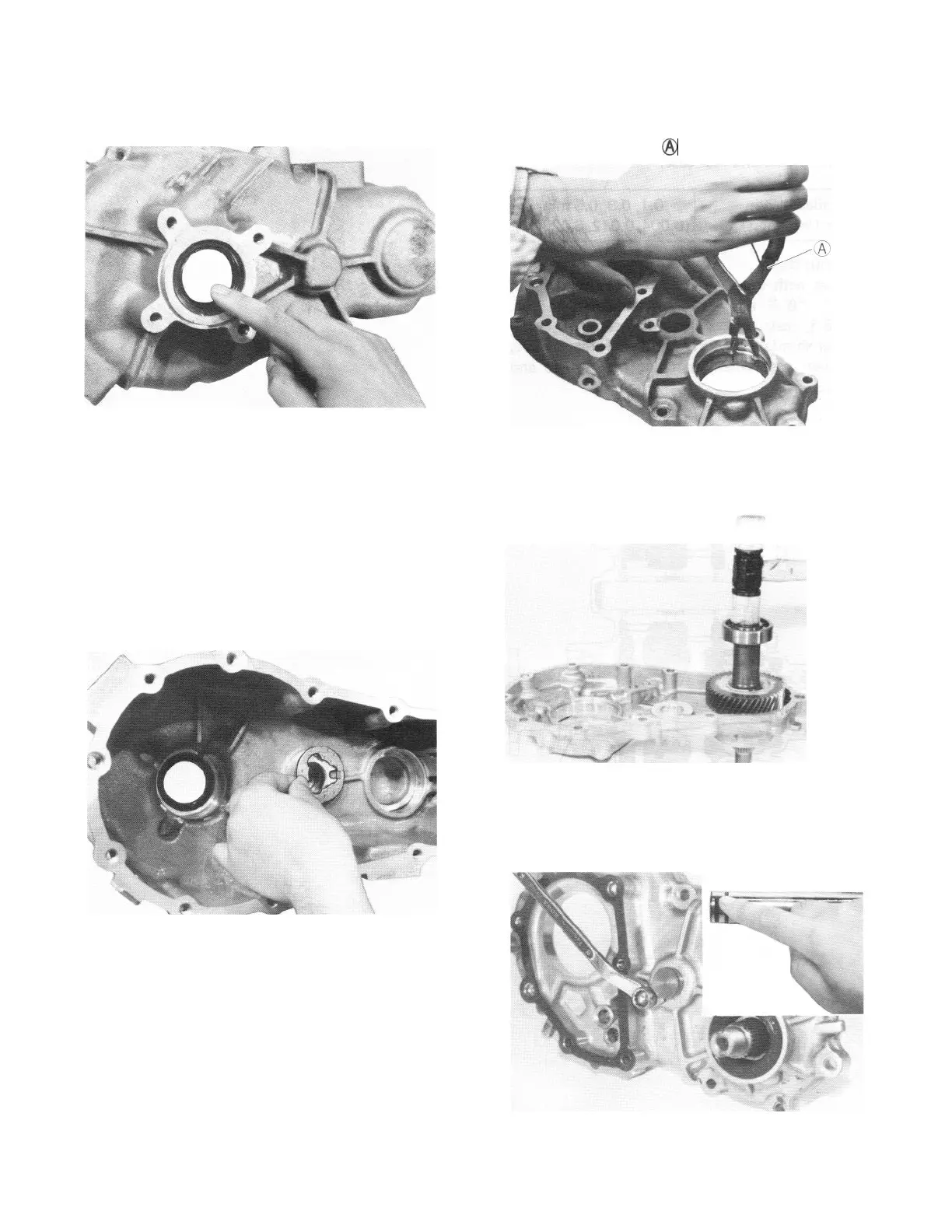

Rear Case
1) Install oil seal in rear case and apply grease
to oil seal lip.
Center Case
1) Install input shaft front bearing circlip and
oil seal in center case.
Snap ring pliers @ : (09900~6108)
Fig. 14-49
Fig. 14-51
2) Install counter shaft thrust washer to rear
case, bringing its face without depressions
against case and fit its bent portion securely
into groove in case.
NOTE:
Apply ample amount of grease to both surfaces
of washer so as to lubricate sliding surfaces and
prevent washer from moving out of place or
slipping off.
Fig.
14-50
2) Install input shaft to center case.
Fig.
14-52
3) After greasing 0 ring on counter shaft,
insert shaft into center case and secure
shaft with lock plate and bolt.
Fig.
14-53
Fig. 14-50
14-18
Fig. 14-53
Fig. 14-52
