DRUM BRAKE ASSEMBLY (Rear Wheel Brake)
[GENERAL DESCRIPTION]
The drum brake assembly has a self shoe clearance adjusting system so that drum-to-shoe clearance is
maintained appropriate at all times. For details, refer to OPERATION in the next page.
NOTE:
Replace all components included in repair kits used to service this drum brake. Lubricate parts as specified.
WARNING:
When servicing wheel brake parts, do not create dust by grinding or sanding brake linings or by clean-
ing wheel brake parts with a dry brush or with compressed air. (A water dampened cloth should be
used.) Many wheel brake parts contain asbestos fibers which can become airborne if dust is created
during servicing Breathing dust containing asbestos fibers may cause serious bodily harm. If any
hydraulic component is removed or brake line disconnected, bleed the brake system. The torque
values specified are for dry, unlubricated fasteners.

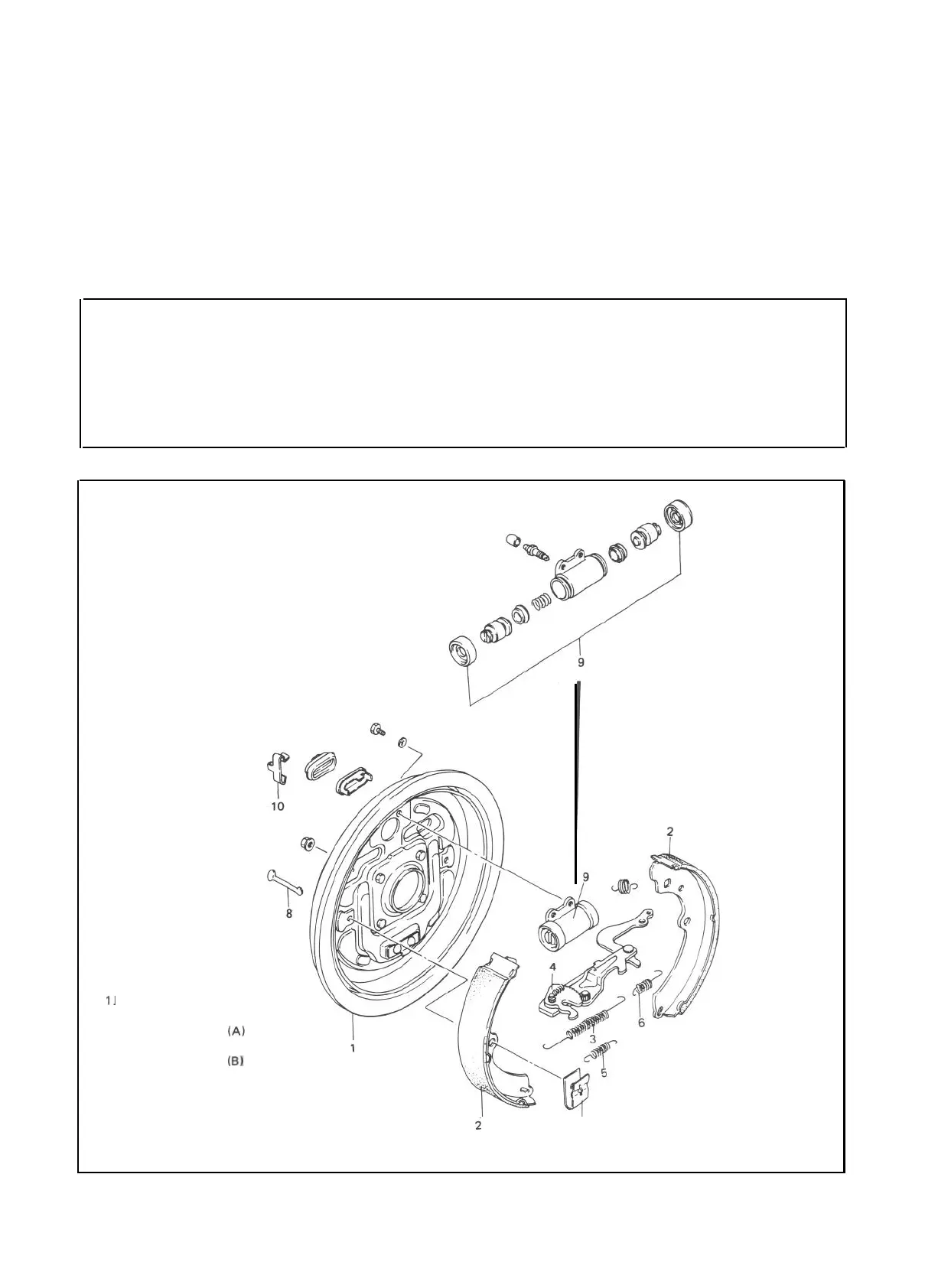

1.
Brake back plate
2. Brake shoe
3. Shoe return spring
(A)
4. Brake strut rod
5. Shoe return spring
(B)
6. Rod spring
7. Shoe hold down spring
8. Shoe hold down pin
9. Wheel cylinder
10. Stopper plate
i
I
7
Fig. 19-8
19-8
