2) Remove air horn from float chamber after
disconnecting three hoses and pump lever and
removing five screws of air horn. Loosen idle
up bracket screw.
3) Remove float and needle valve from air horn
and then needle valve seat and filter.
1. Air horn
2. Needle valve seat
3. Needle valve filter
1. Air horn
3. Pump lever
2. Hose
4. Screw

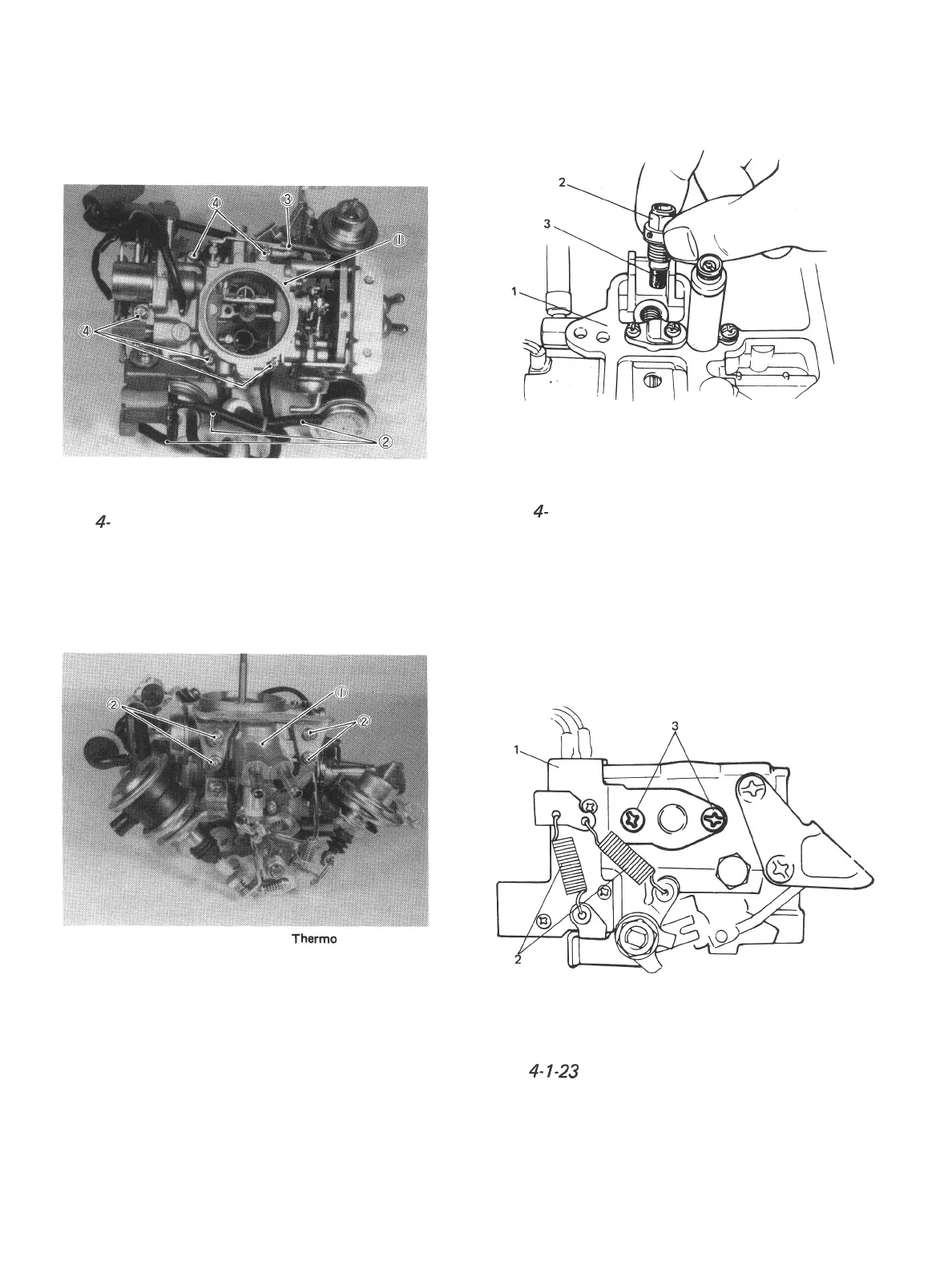

Fig. 4- l-22 Needle valve seat and filter
Fig. 4- l-20 Air horn and hoses, etc.
NOTE:
Never loosen 4 screws fixing element holder at
this point.
4) Remove micro switch bracket after removing
2 springs and 2 screws indicated in below
figure.
NOTE:
Don’t remove micro switches from bracket.
1. Therm0 element holder
2. Screw
Fig. 4-l-21
1. Micro switch bracket
2. Spring
3. Screw
Fig. 4- l-23 Idle and wide open micro switches
and bracket
