19-4. MASTER CYLINDER
REMOVAL
1) Clean outside of reservoir.
2) Take out fluid with a syringe or such.
3) Remove reservoir connector screw.
4) Remove reservoir.

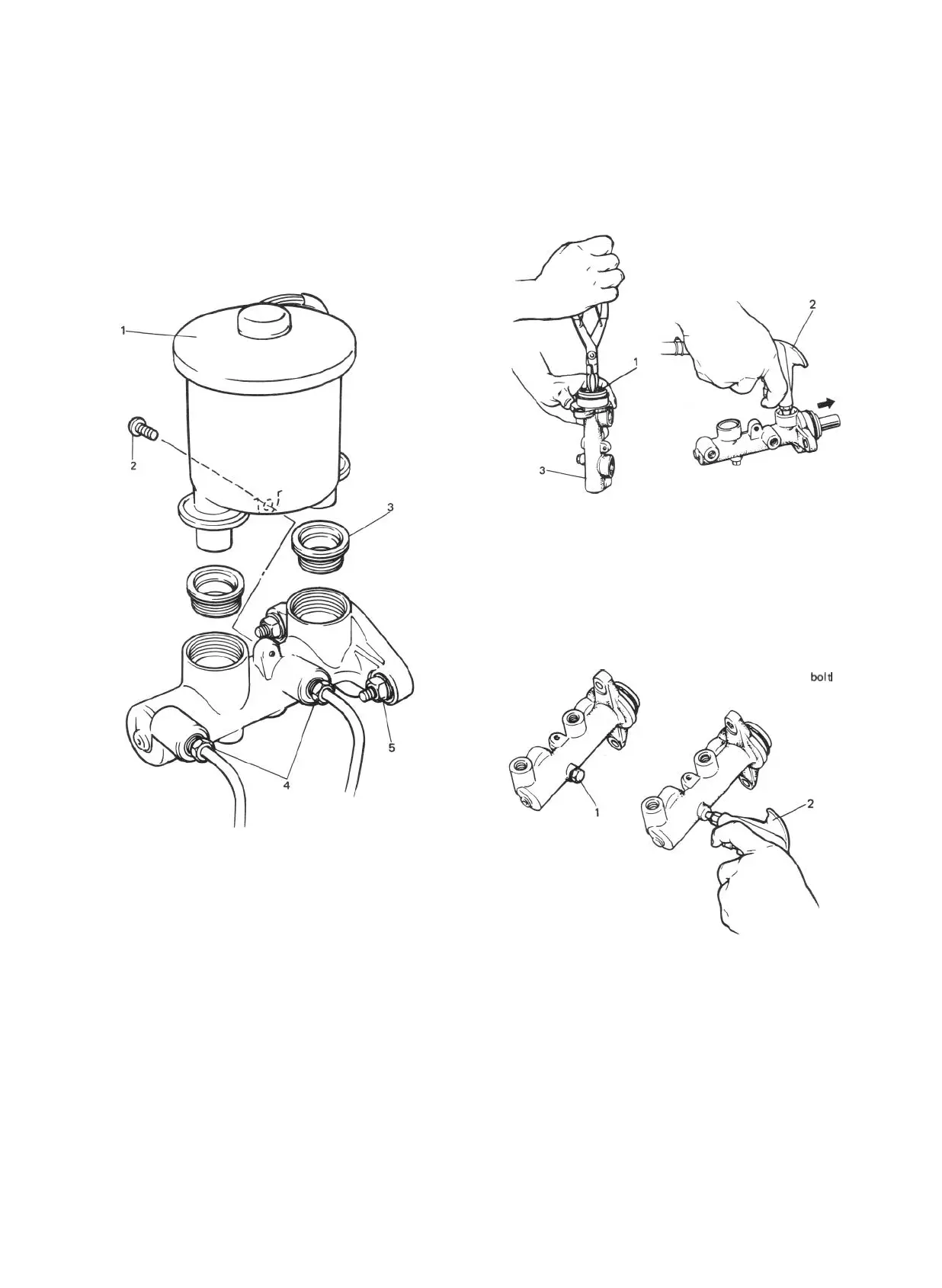

1. Reservoir
2. Connector screw
3. Grommets
4. Flare nuts
5. Attaching nuts
Fig. 19-56
5) Disconnect 2 brake pipes from master cylin-
der.
NOTE:
Do not allow brake fluid to get on painted
surfaces.
6) Remove 2 attaching nuts and washers.
7) Remove master cylinder.
DISASSEMBLY
1) Remove circlip.
2) Remove primary piston by using compressed
air as shown. Be cautious during removal as
primary piston will jump out.
Fig. 19-57
2. Compressed air
3. Master cylinder
3) Remove piston stopper bolt. Then remove
secondary piston by blowing compressed air
into hole from which piston stopper bolt was
removed.
1. stopper bolt
2. Compressed air
Fig. 19-58
1. Circlip
19-27
