Ambient temperature
Clearance
Fig. 4-l-47

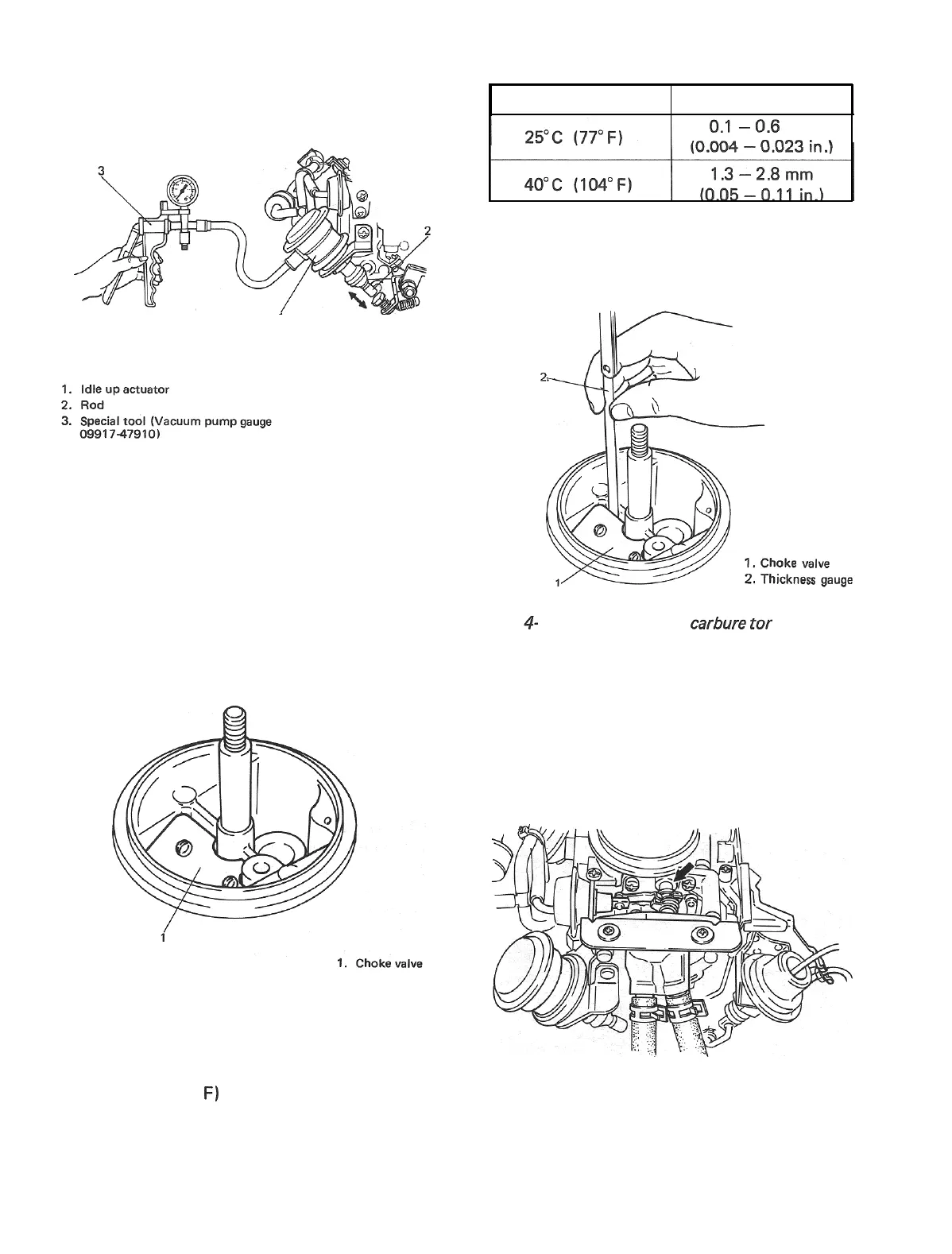

Choke Adjustment
Perform following check and adjustments with
air intake case removed when engine is cold.
[Choke valve]
1) Check choke valve for smooth movement by
pushing it with a finger.
Fig. 4-l-48 Choke valve
2) Make sure that choke valve is closed almost
completely when ambient temperature is
below 25°C (77”
F)
and engine is cold.
3) Check to ensure that choke valve to carbure-
tor bore clearance is within following specifi-
cations when engine is cool.
I.6
mm
C&n*?.:..
\
NOTE:
As ambient temperature or engine coolant
temperature rises high, clearance increases.
1.
Choke
valve
2.
Thickness
gauge
Fig.
4-
149 Choke valve to
carbure
tar
bore
clearance
4) If clearance is found excessively large or
small in the above check, check strangler
spring, choke piston and each link in choke
system for smooth operation. Lubricate
choke valve shaft and each link with spray
lubricant if necessary.
Fig. 4-l-50
4-22
