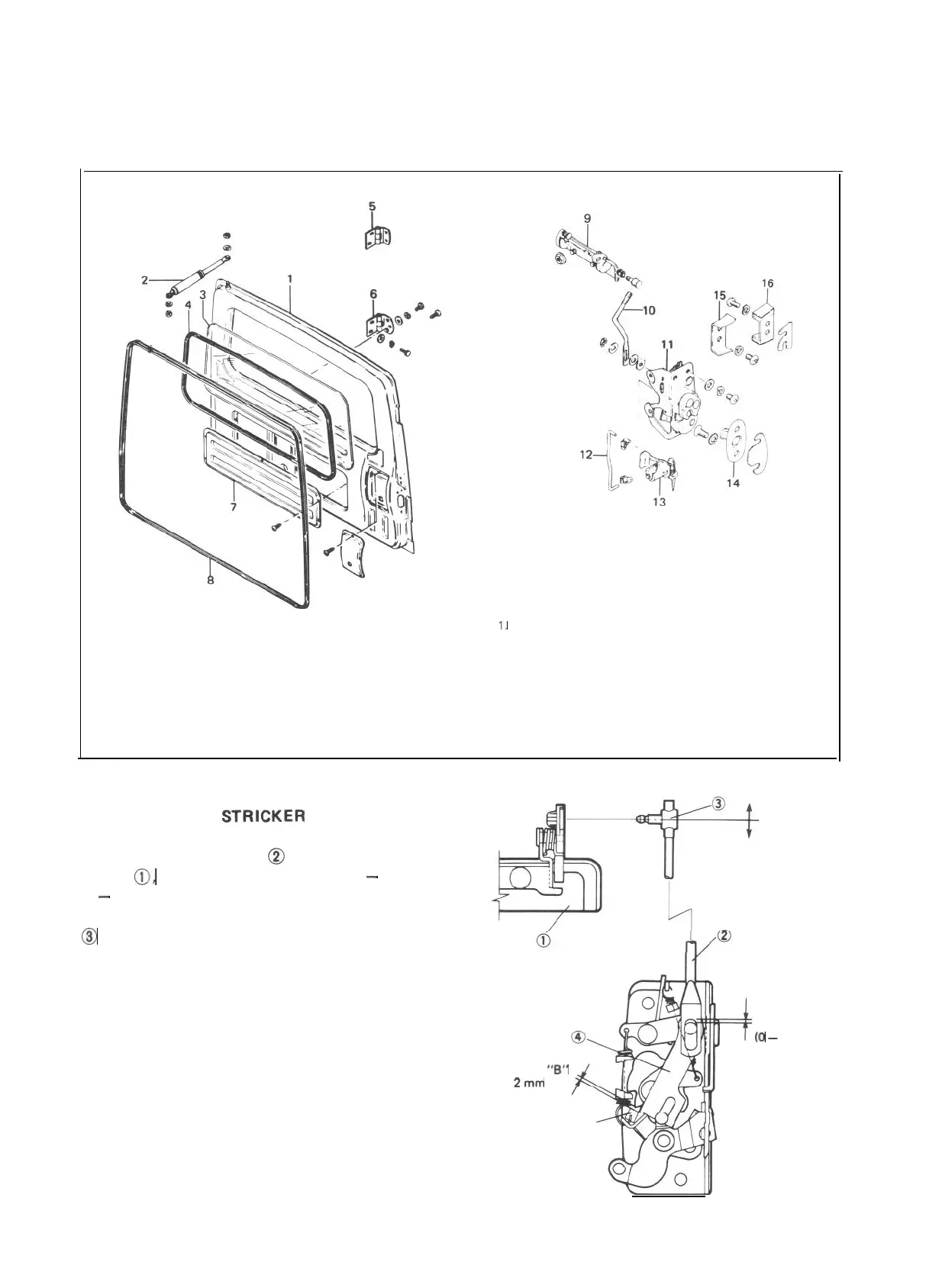

20-3. BACK DOOR (APPLICABLE TO HARD TOP VEHICLE)
1. Back door panel
9.
Outside handle
2. Door balancer
10.
Outside handle rod
3. Back window glass
11. Back door lock
4. Window weatherstrip
12. Control rod
5. Door upper hinge
13. Door lock key set
6. Door lower hinge
14.
Door lock striker
7. Service hole lid
15.
Door stop female
8. Door weatherstrip
16.
Door stop male
DOOR LOCK AND STRICKER ADJUSTMENT
Door Outside Open Rod
When installing open rod @ onto outside open
handle 0, adjust clearances “A” to 0 - 2 mm
(0 - 0.079 in) and “B” to 2 mm (0.079 in) as
shown in Fig. 20-3-2 by turning adjusting joint
Co
NOTE:
Don’t push down push plate (4) when installing
the rod.
After installing the open rod, give the outside
handle a trial and check if its play felt then is
appropriate.
“B”
2mm
(0.079 in)
Release cancel lever
“A”
O-2mm
(0 - 0.079
in)
Fig. 20-3-2
20-11
Fig. 20-3-1
