SECTION 13
TRANSMISSION
CONTENTS
13-l. GENERAL DESCRIPTION
..................................
13-1
TRANSMISSION GEAR RATIO
..............................
13-3
13-3. DISMOUNTING.
..........................................
13-4
DISASSEMBLY
............................................
13-5
13-5. INSPECTION OF COMPONENTS
............................
13-12
13-6. IMPORTANT STEPS IN INSTALLATION
.....................
13-15
13-7. MAINTENANCE SERVICES
................................
13-25
13-8. RECOMMENDED TORQUE SPECIFICATION
.................. 13-26

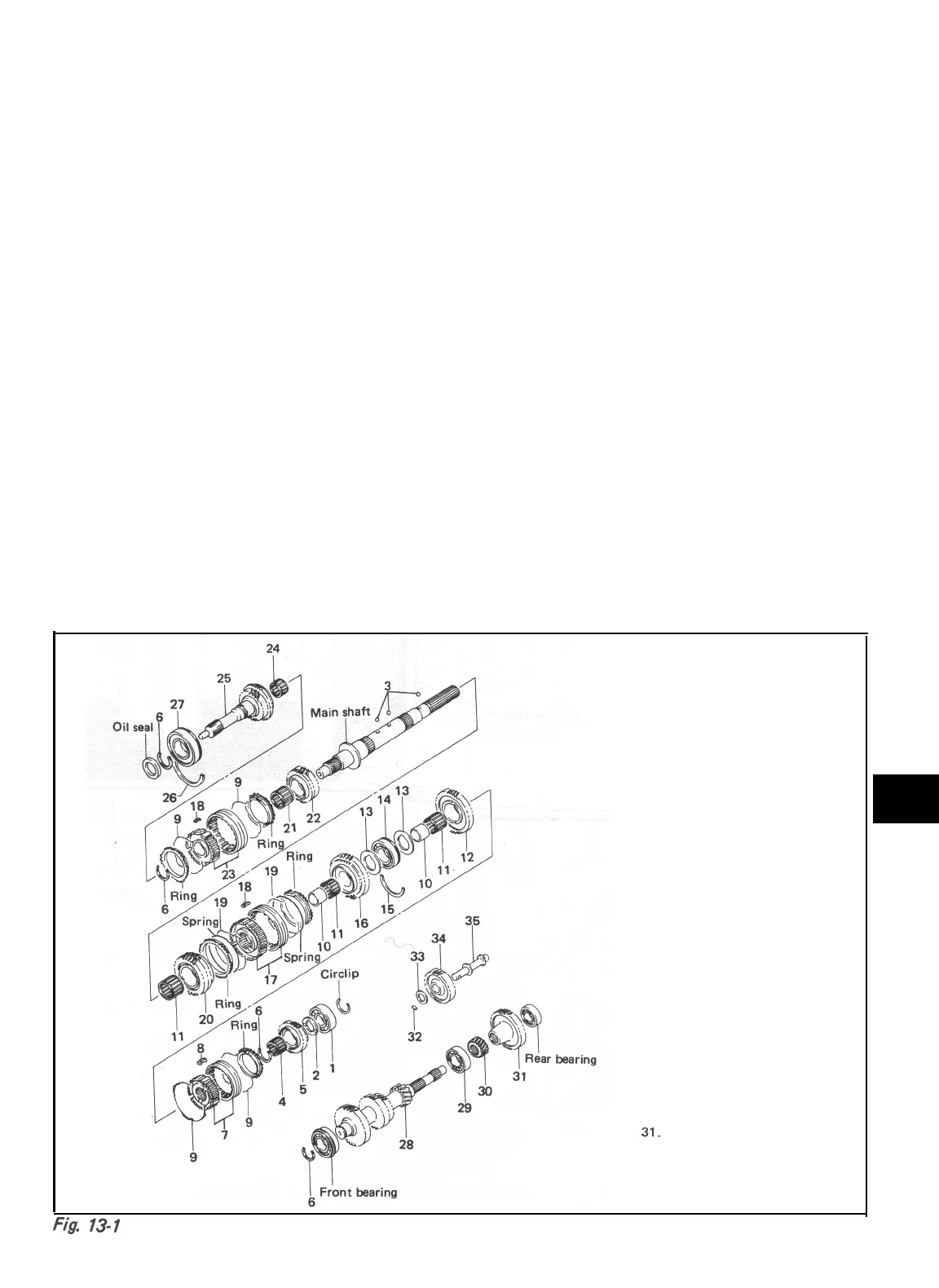

13-1. GENERAL DESCRIPTION
24
1.
Main shaft rear bearing
2. 5th gear washer
3. Main shaft washer bell
4. 5th gear needle bearing
Oil sealfi
Main shi
5.
5th gear
6.
I
Circlip
7. Synchronizer reverse hub set
8.
Synchronizer key
9.
Synchronizer spring
10.
Gear bush
11.
Needle bearing
12.
Reverse
gear
13. Main shaft bearing washer
14. Main shaft bearing
15.
C ring
16.
Low gear
17.
Synchronizer low speed hub set
18.
Synchronizer key
19.
Synchronizer spring
20.
2nd gear
F
21. 3rd gear needle bearing
22.
3rd gear
23. hub
I
1 High speed synchronizer
set
I
24. Input shaft bearing
25.
Input shaft
i ’
IL’
ear bearing
26. C ring
27.
A
Front bearing
28.
Counter shaft
4
29.
Center bearing
9
30.
Reverse
gear
I i
31. Counter shaft 5th gear
9
32.
Pin
33.
Washer
34. Reverse idle gear
35. Reverse gear shaft
13-1
13-2.
13-4.
13
