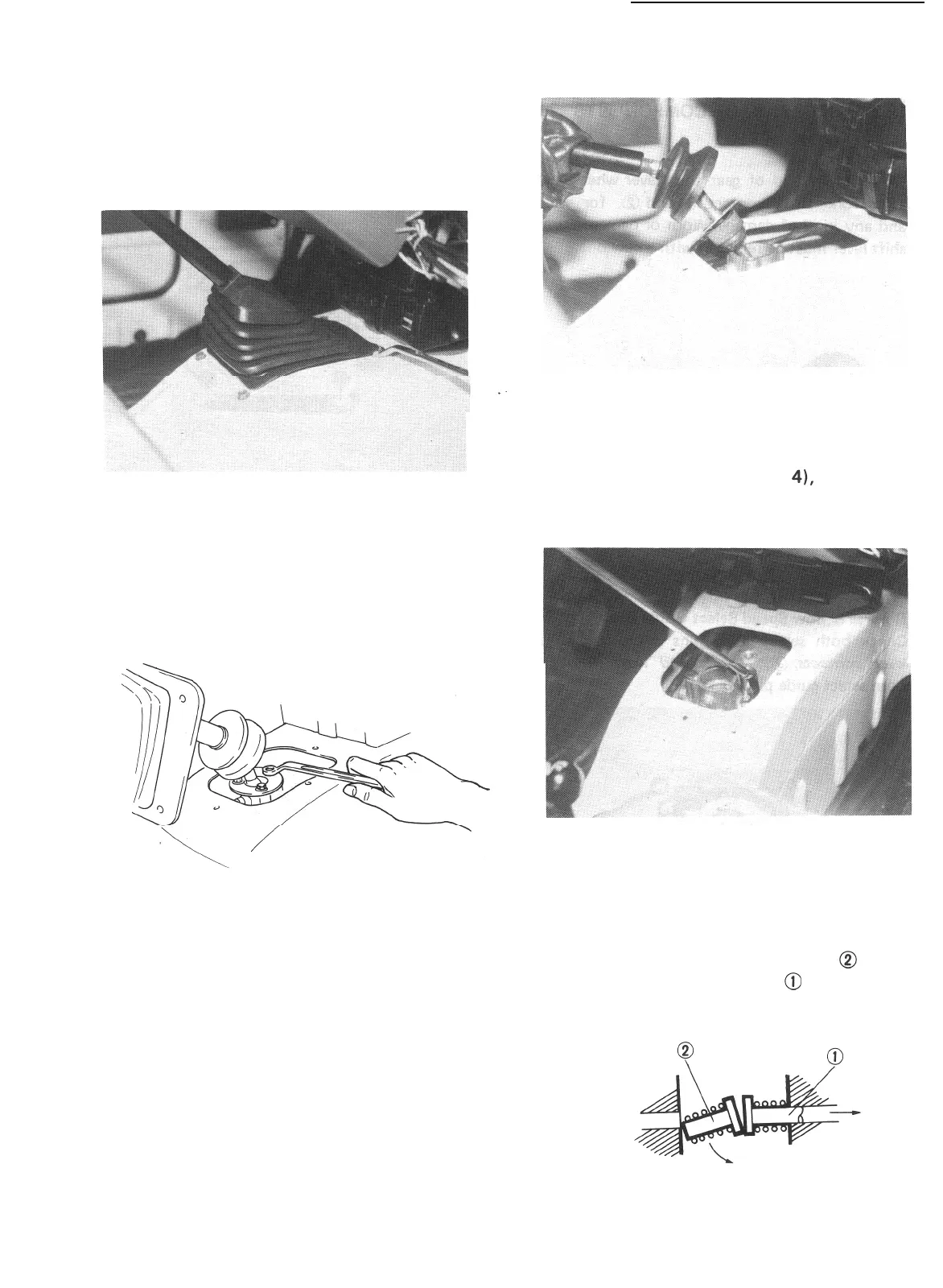

12-2. REMOVAL
Gear Shift Lever
1) Remove bolts tightening gear shift lever boot
No. 2 and take boot off floor center tunnel.
Fig. 12-2
2) Take boot No. 1 off gear shift lever case and
move it up (toward knob).
3) Remove 3 bolts tightening gear shift lever case
cover.
Fig. 12-3
4) Pull gear shift lever out of gear shift lever case.
Fig. 12-4
Gear Shift Lever Select Guide Pins
1) After gear shift lever is removed according
to foregoing steps 1) through 4), remove gear
shift lever case by loosening its tightening
bolts.
Fig. 12-5
2) Remove reverse select pin screw and take out
spring and ball from case.
3) Remove low speed select pin bolt.
4) Compress reverse select guide pin @ against
low speed select guide pin @ and take it out
of gear shift lever case.
Compress
Fig. 12-6
Removal
12-3
