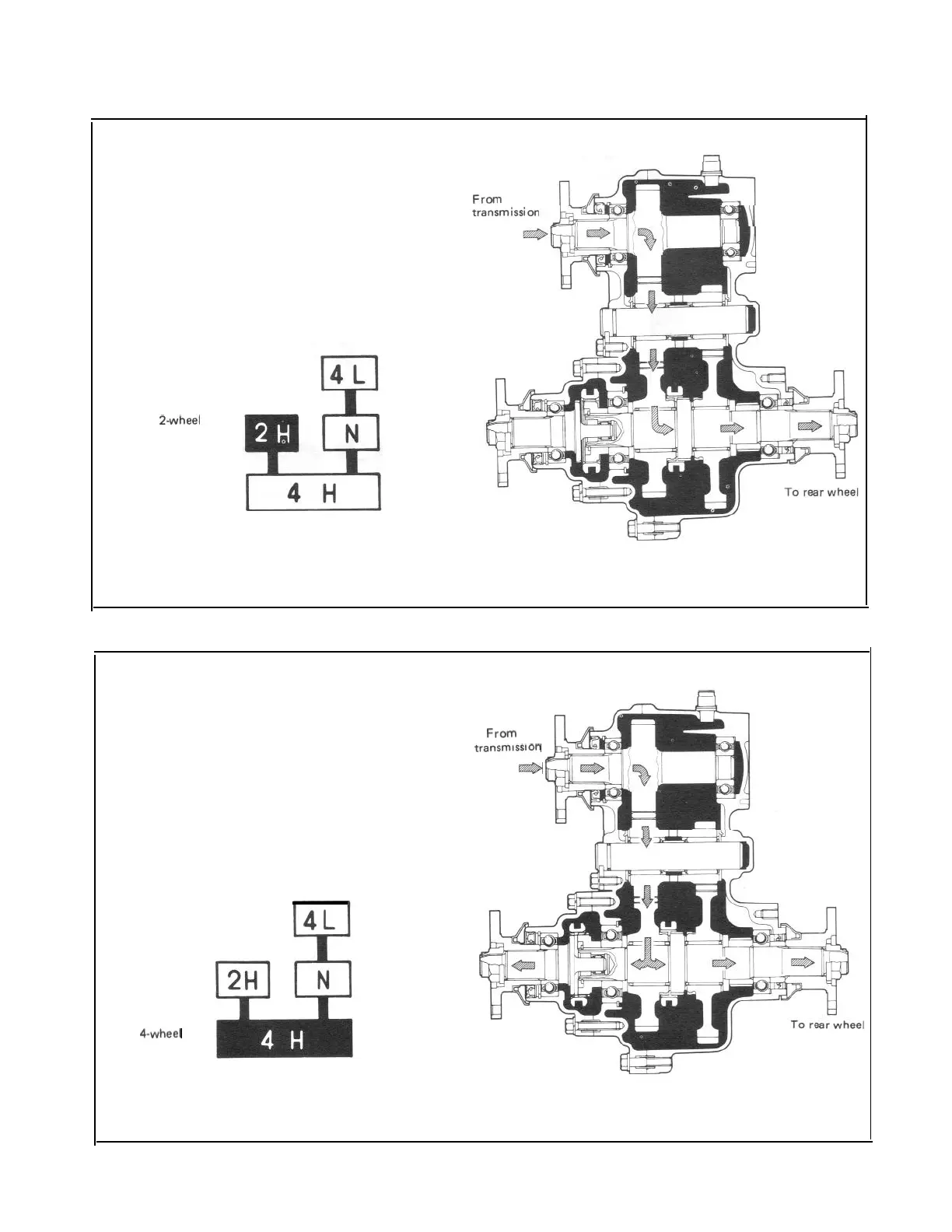

14-2. SELECTIVE FLOWS OF TRANSFER DRIVE
2-Wheel Drive (Rear-Wheel Drive)
Rear shifter fork pushes rear clutch sleeve into
“high” gear, thus coupling the gear to output
rear shaft.
Drive flows from input shaft to output rear shaft
tra”SmiSSion
through big gear, “high” gear and rear clutch.
Gear shift control lever position
a-wheel drive
(Rear wheel drive)
Fig. 14-2
4-Wheel Drive HIGH (All-Wheel Drive on HIGH)
Under the conditions of rear-wheel drive,
described above, front shifter fork pushes the
sleeve of front clutch onto the toothed clutch From .
ring, thus coupling output rear shaft to output transm’ss’on
shaft run
e
front shaft. Front shaft and rear
together on HIGH.
Gear shift control lever position
4-wheel
drive HIGH
To front wheel
Fig. 14-3
14-3
