ALTERNATOR SERVICE
REMOVAL
1) Remove battery
(-)
terminal.
2) Disconnect alternator lead wires (coupler
&
white lead wire).
3) Unclamp brake pipe from pipe clamp on radiator under cover and remove radiator under cover.
4) Remove alternator mounting bolts and alternator drive belt adjusting bolt.
5) Take down alternator.

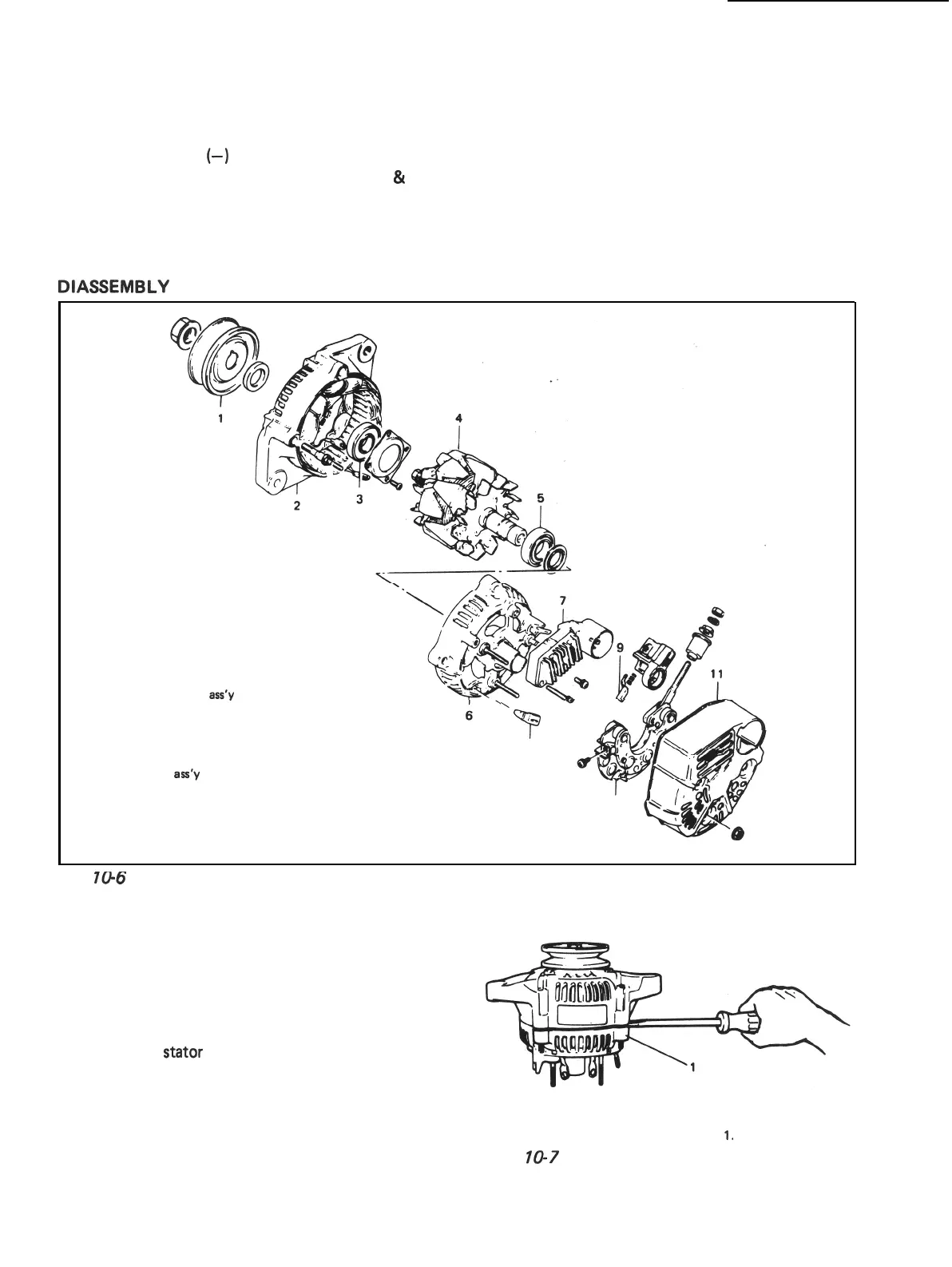

DIASSEMBLY
1.
Alternator pulley
2.
Drive end frame
ass’y
3. Drive end frame bearing
4.
Rotor
5. Rear end frame bearing
6.
Rear end frame
7.
Regulator aa’y
6.
Terminal insulation bush
9.
Brush
10.
Rectifier
11. Rear end cover
‘p”
“i
6
r
10
Fig.
706
1) Remove nut and take off B terminal insula-
tor bushing.
2) Remove 3 nuts and take off rear end cover.
3) Remove 2 regulator mounting screws and 3
brush holder screws and take off regulator
and brush holder.
4) Remove 4
stator
coil terminal screws.
5) Remove rectifier holder together with I.C.
regulator.
6) Remove 4 nuts and take off rear end frame,
Fig.
10-7
1.
Rear end frame
10-6
