21-15. WIRING HARNESS ROUTING
When reinstalling wire harness, be careful for the following.
l When doing wiring harness related work, make always sure to disconnect battery negative cable from
battery.
l Clamp wire harness securely at prescribed positions.
l Try to route wire harness so as to avoid contact with other parts as much as possible. Use special care
not to let it contact sharp edges of body or other parts.
0 Connect connectors securely.

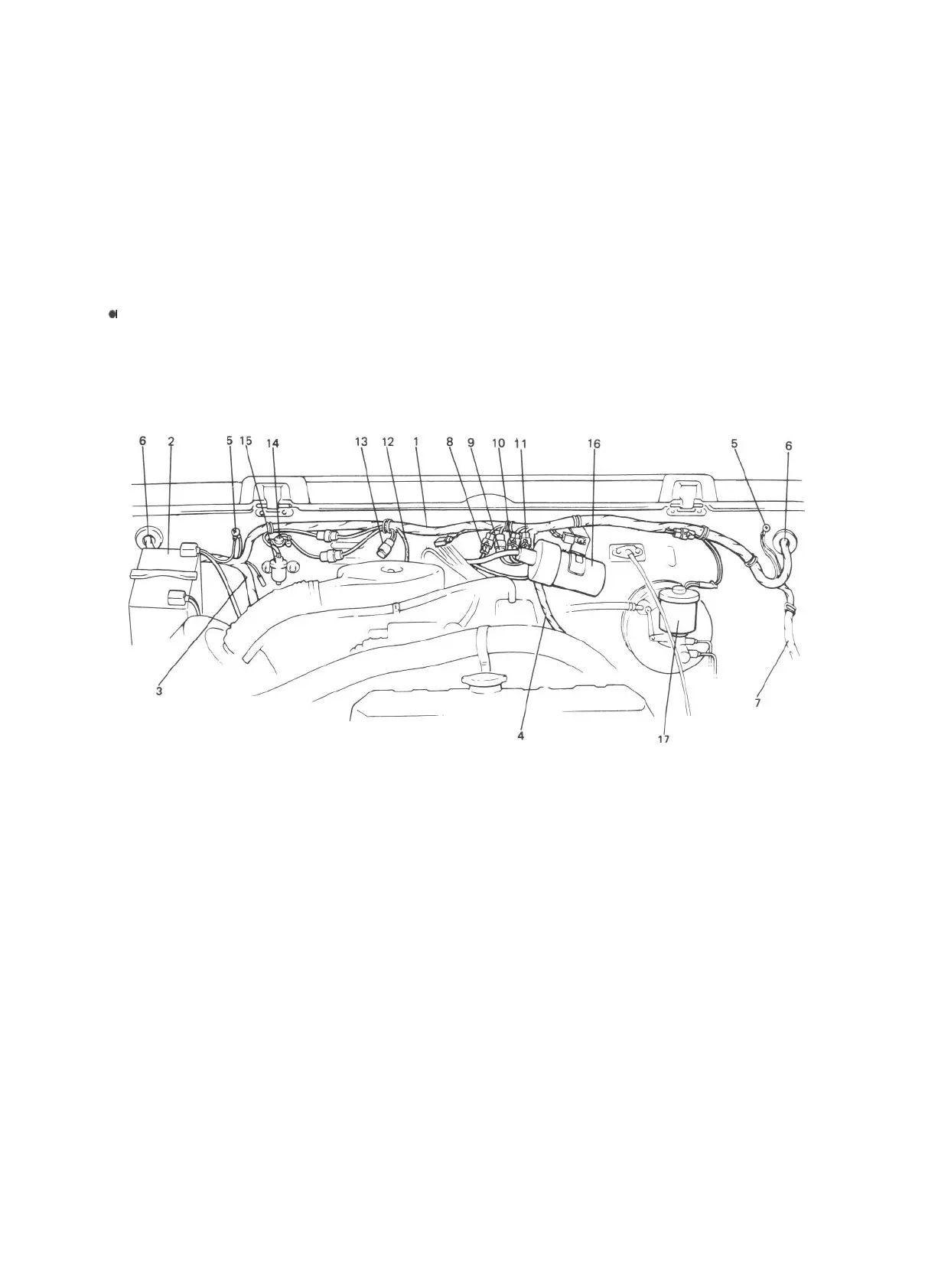

Engine Room Wiring
1.
Wire harness No. 2
2.
Battery
3. To starter, alternator, head light, small light, horn and etc.
4. To license light, stop/tail light, 4WD switch
5.
Earth
6.
To wiring harness No.
1
7. To head light, small light, etc.
8.
To distributor
9. To ignition coil
10. To back up light switch
11. To fifth switch
12.
To TWSV
13.
Duty check coupler
14. Thermal engine room switch
15. HAC
16.
Ignition coil
17.
Brake fluid reservoir
Fig. 27-37
21-19
