21-11. MAIN SWITCH KEY WARNING
21-13. REAR DEFOGGER (OPTIONAL
BUZZER
FOR HARD TOP MODEL)

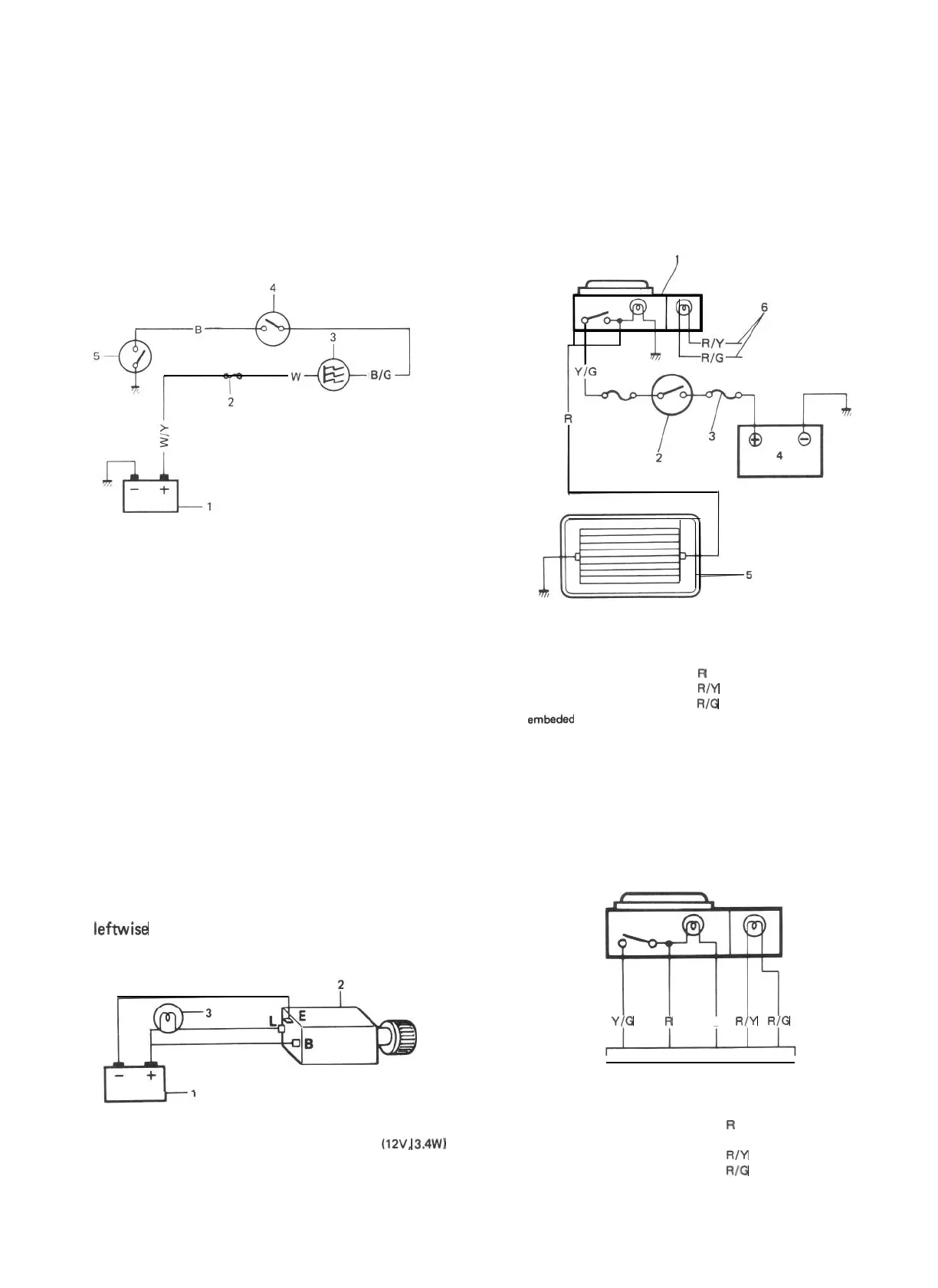

The main switch key warning buzzer circuit is a
system to sound the buzzer if the driver leaves
the car with the main switch key inserted in
place, urging him to take it out of place.
1. Battery 4. Main
switch W/Y : White/Yellow
2. Fuse 5. Door
switch W : White
3. Buzzer
Fig. 21-29
INSPECTION
If the main switch key warning buzzer does not
sound, use the above Wiring Diagram as reference
to check the buzzer.
21-12. ILLUMINATION CONTROLLER
INSPECTION
Use a test lamp to wire as illustrated below.
Make sure that the illumination controller knob
is turned rightwise to brighten the test lamp,
leftwise to darken it.
1. Battery
Fig. 21-30
2. Illumination controller
3. Test lamp (12V, 3.4W)
The Defogger circuit for the rear window glass
heating wires is as follows:
1.
2.
3.
4.
5.
6.
Defogger switch
Y/G : Yellow/Green
Main switch
B : Black
Fusible link
R : Red
Battery
R/Y : Red/Yellow
Rear window glass with
R/G : Red/Green
embeded heating wire
To illumination controller
Fig. 21-31
To check function of Defogger Switch, check
continuity between Yellow/Green wire and Red
wire when Defogger Switch is “ON”
Defogger switch
YIG R B R/Y RIG
Fig. 21-32
Y/G : Yellow/Green
R : Red
B
: Black
R/Y : Red/Yellow
R/G : Red/Green
21-16
