Suzuki Samurai 1987 User Manual

Item
Standard
Limit
In
6.965 - 6.980 mm
Valve
(0.2742 - 0.2748 in.)
stem
diameter
-
Ex
6.950 6.965 m m
(0.2737 - 0.2742 in.)
Valve
guide
I.D.
-
In 7.000 7.015 m m
(0.2756 - 0.2761 in.)
7.000 7.015 m m
-
Ex’ (0.2756 - 0.2761 in.)
Stem-to-
In
0.020 - 0.050 mm
0.07 mm
guide
(0.0008 - 0.0019 in.)
(0.0027 in.)
clearance
Ex
0.035 - 0.065 mm
0.09 mm
(0.0014 - 0.0025 in.)
(0.0035 in.)

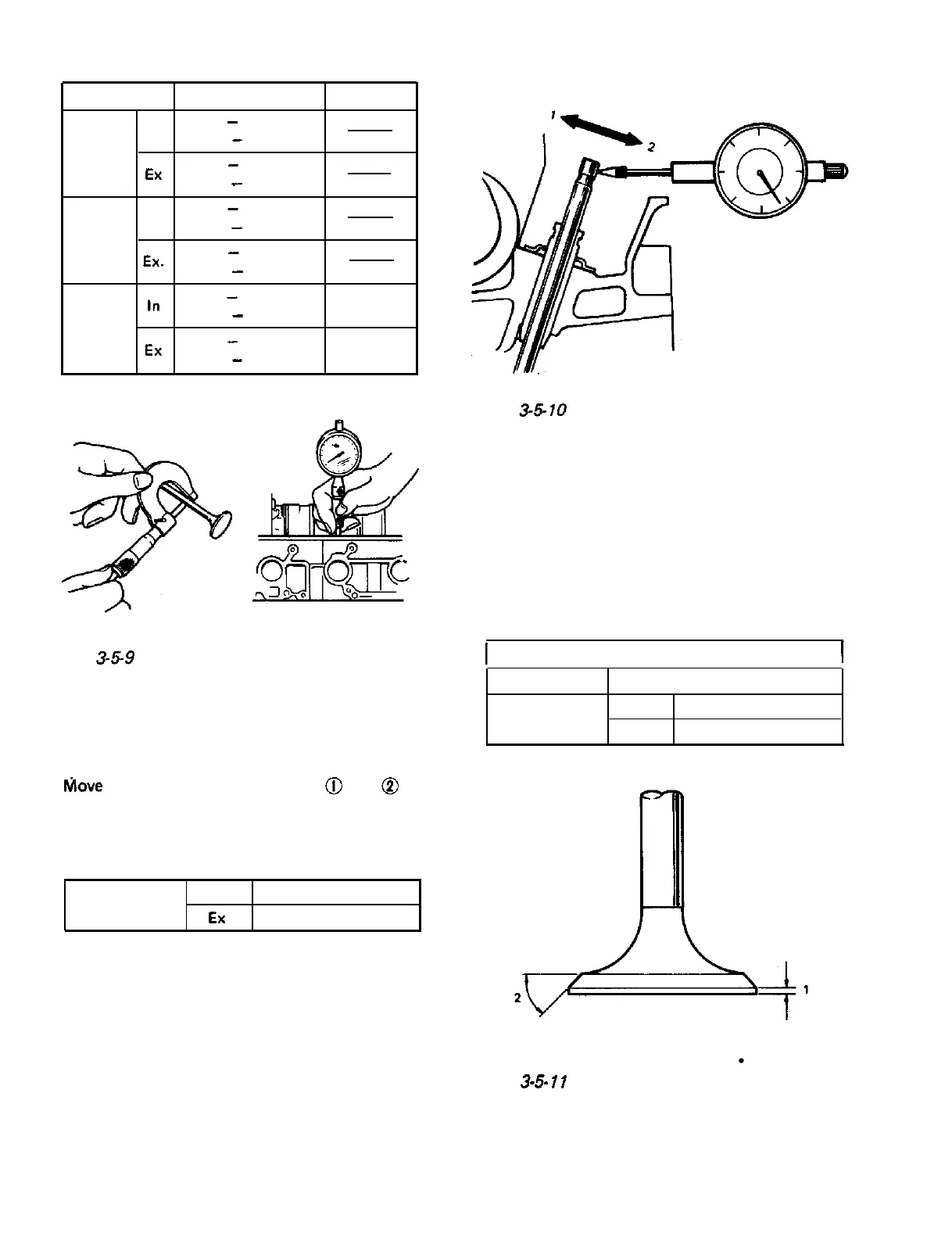

Fig. 34 10
Valves
l Remove all carbon from valves.
l Inspect each valve for wear, burn or distor-
tion at its face and stem and replace as neces-
sary.
l Measure thickness of valve head. If measured
thickness exceeds its limit specified below,
replace valve.
Fig. 3-5-9 I
Valve head thickness
I
If bore gauge is not available, check end deflec-
tion of the valve stem in place with a dial
gauge rigged.
fvlove stem end in the directions @ and @ to
measure end deflection.
If deflection exceeds its limit, replace valve stem
and valve guide.
Valve stem end
In
deflection limit Ex
0.14 mm (0.005 in.)
0.18 mm (0.007 in.)
Standard
1 .O mm
(0.039 in.)
Limit
In
0.6 mm (0.023 in.)
Ex
0.7 mm (0.027 in.)
Fig. 3-S 11
1. Valve head thickness
2. 45
3-20
