Suzuki Samurai 1987 User Manual

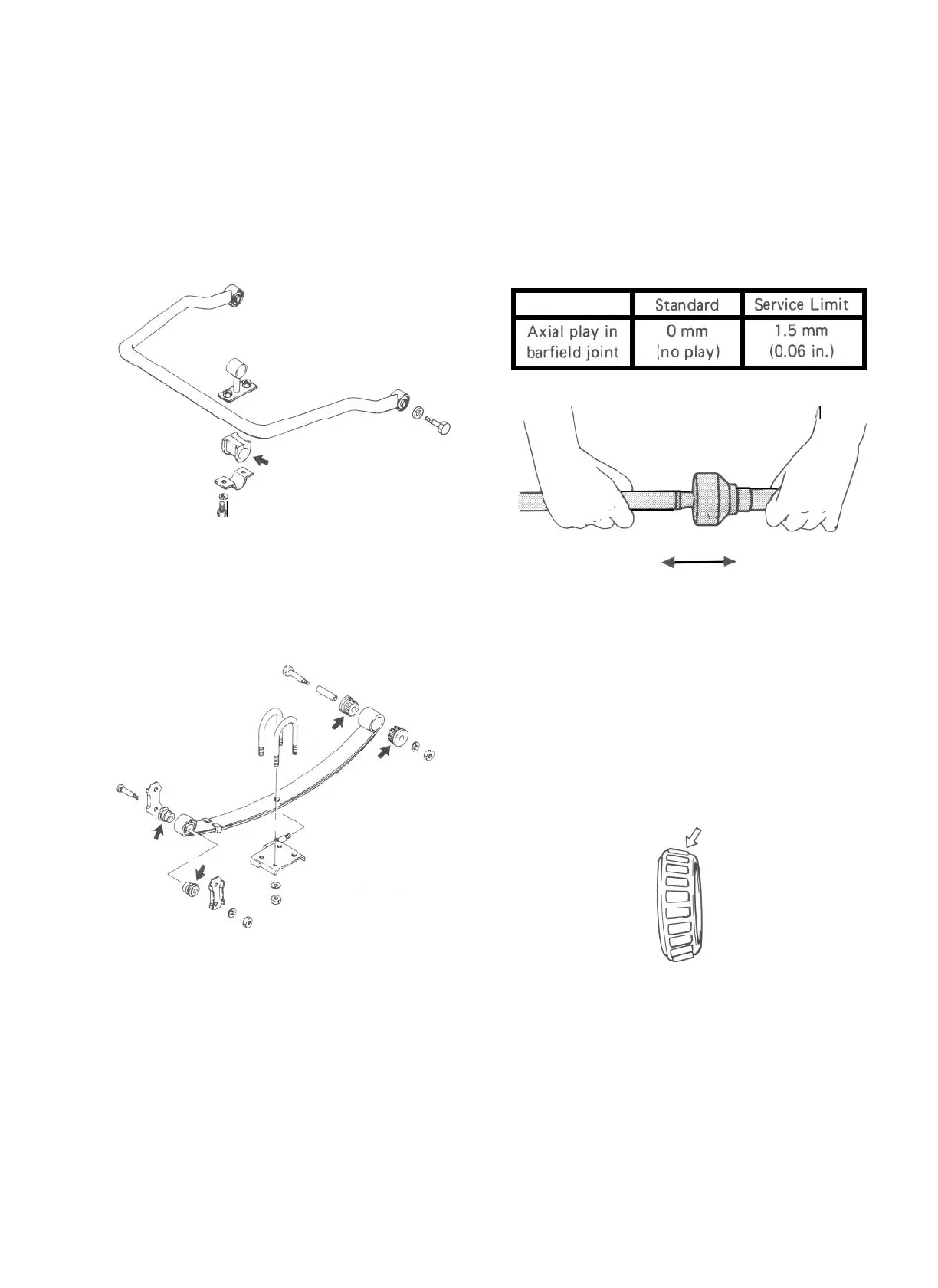

INSPECTION OF COMPONENT
Stabilizer and its Bush
Inspect stabilizer for damage or deformation.
If defective, replace.
Inspect bushes for damage, wear or deteriora-
tion. If defective, replace.
8
Barfield Joint
To be checked on this joint is its axial play,
which shows up when a push-and-pull motion is
given to live axle shaft and wheel spindle held in
both hands, as shown in figure. There should be
no play at all but a play of up to 1.5 mm (0.06
in.) is permissible. If play exceeds service limit,
replace it.
\
/
Leaf Spring Bushes
Inspect for wear and breakage. If found defec-
tive, replace.
Front Wheel Bearing
Check front wheel bearing rollers for damage.
If anything is found wrong, replace bearing with
a new one.
17-10
Fig. 17-1-27
Fig. 17-1-28
Fig. 17-1-30
Fig. 17-1-29
