Suzuki Samurai 1987 User Manual

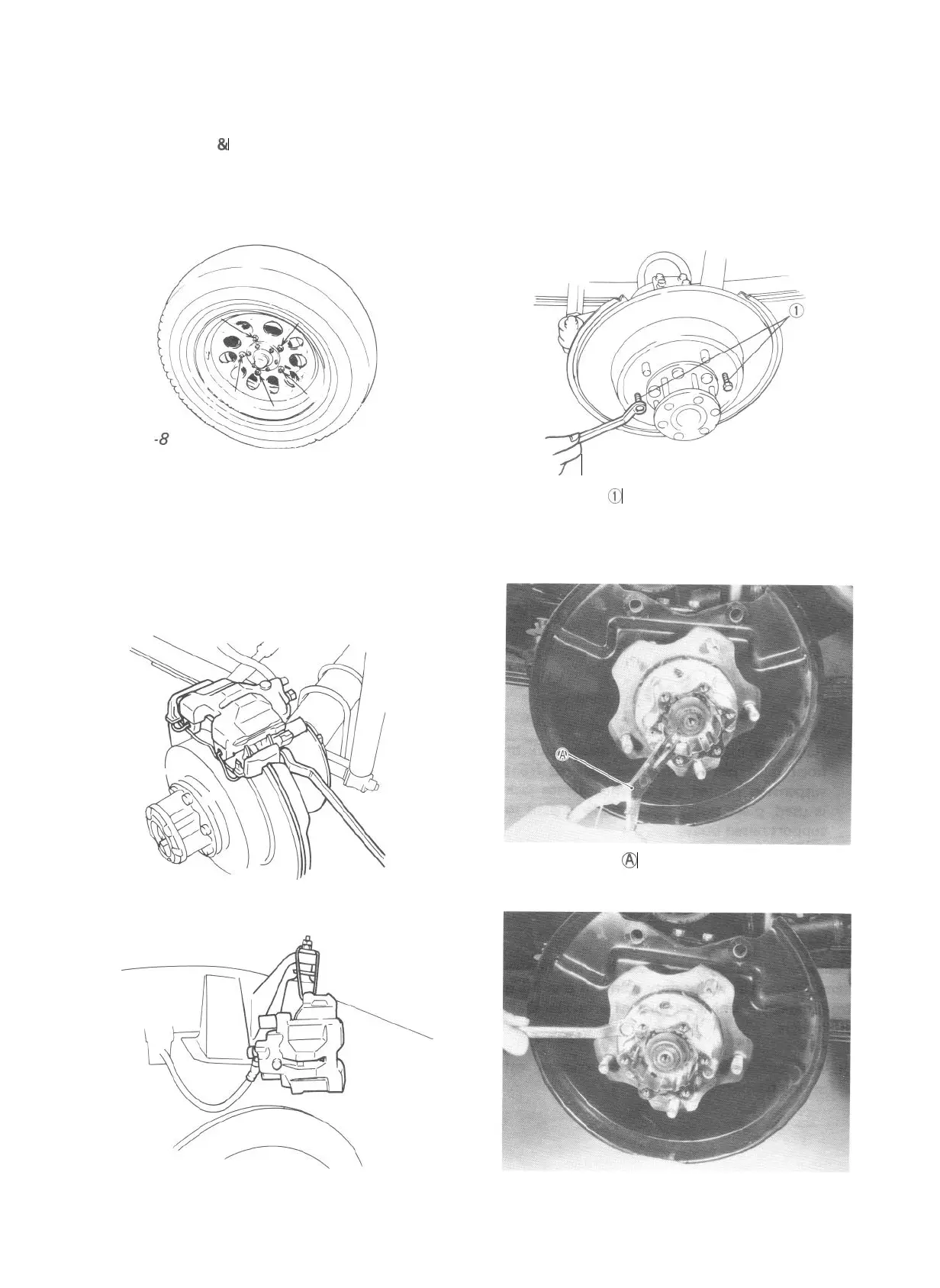

Front Wheel Hub 81 Bearing
1. Loosen the five nuts securing the wheel.
Raise the front end by jacking.
Rest the machine steady on safety stands.
2. Remove the five nuts and take off the wheel.
Fig. 17-1-8
3. Remove the caliper with carrier by loosen-
ing carrier bolts.
NOTE:
Hang removed caliper with a wire hook or the
like so as to prevent brake hose from bending
and twisting excessively or being pulled.
Don’t operate brake pedal with caliper removed.
Fig. 17-1-9
4. Remove brake disc.
NOTE:
If brake disc can not be removed by hand, use
8 mm bolts as shown below.
f
@
[For car equipped with free wheeling hub]
5. Remove free wheeling hub cover and circlip.
Fig. 17-1-12-1 @
Circlip remover (09900-06107)
6. Remove free wheeling hub body.
Fig. 17-1-10
17-6
Fig. 17-1-12-2
8mm Bolt
Fig. 17-1-11
