7) Install propeller shaft flanges and tighten
nuts to specified torque and
talk
the nuts.
8) Upon completion of entire assembly work,
install transfer in chassis body in reverse
sequence of removal. Pour gear oil into
transfer gear box.
Refer to information given in next oil and
oil capacity for oil to be used and specified
amount.
NOTE:
When installing oil filler and drain plugs to
transfer case, apply sealant (SUZUKI BOND
No.1215, 99000-31110) to thread part of plug.
14-9. MAINTENANCE SERVICES
Oil Level
Oil level must be checked with car held in
horizontal position in both front to rear and side
to side directions.
Oil level plug and oil filler plug are one and the
same as shown in figure.
If oil flows out of filler plug hole or if oil level is
found up to hole when plug is removed, amount
of oil is appropriate. Replenish oil if noted as
insufficient.
Oil and Oil Capacity
Whenever car is lifted up for any service includ-
ing oil change,
make sure to check around
transfer gear box for oil leakage. Correct defects,
if any, and change or refill oil.
Transfer oil capacity
0.8 litre
(1.7/l
.4
US/Imp. pt)
Transfer oil Gear oil SAE
8OW-90,
specification
75W-80
or
75W-90
It is highly recommended to use SAE
75W-90
gear oil.
For viscosity chart, refer to P. 1-20.

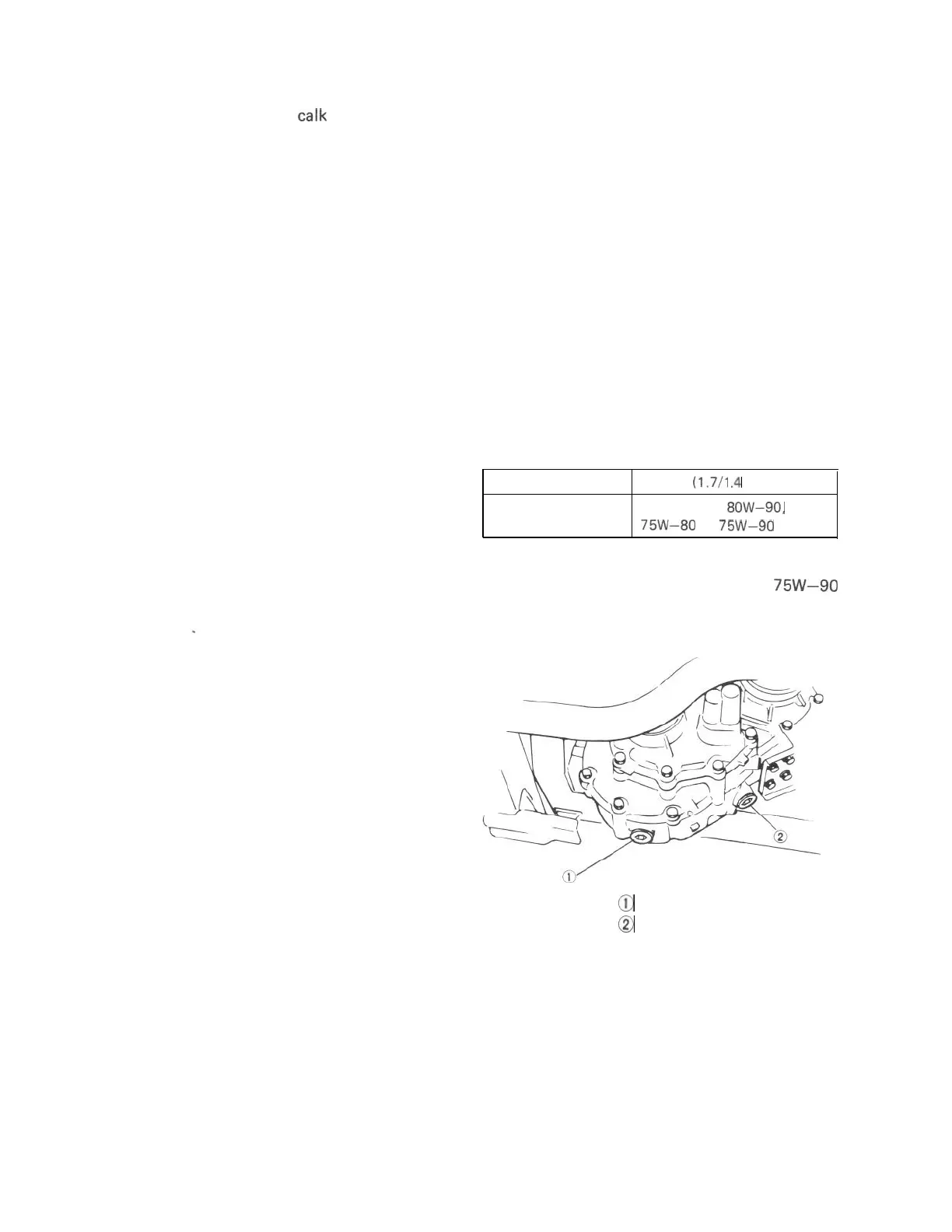

@ : Oil drain plug
Fig. 14-70
@ : Oil filler & level plug
14-22
