4-3.

FUEL PUMP, FILTER AND LINES

GENERAL DESCRIPTION

The main components of the fuel system are fuel tank, fuel pump and fuel filter and it includes three

lines; fuel feed line, fuel return line and fuel vapor line.

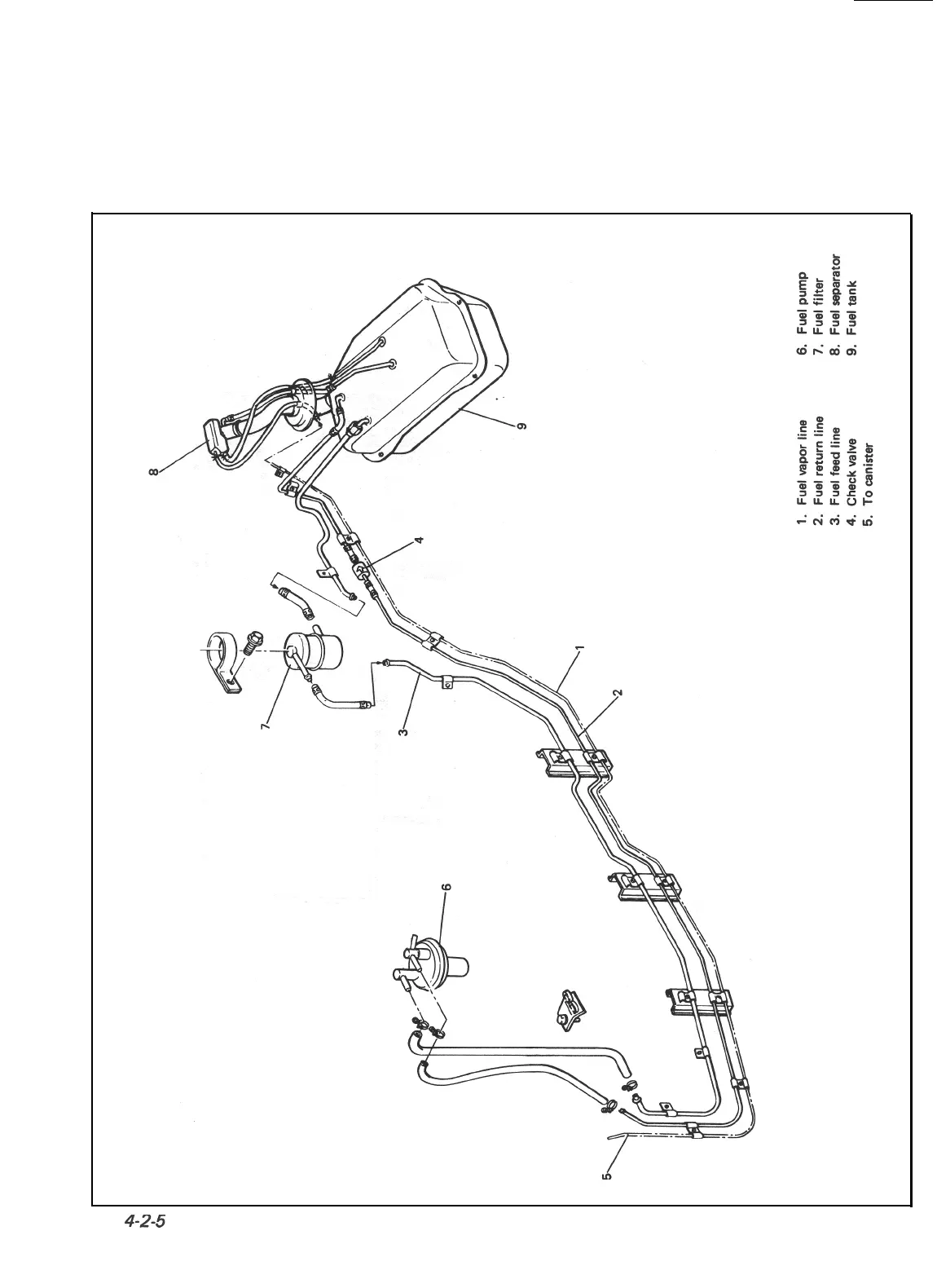

Fig. 4-Z-5
