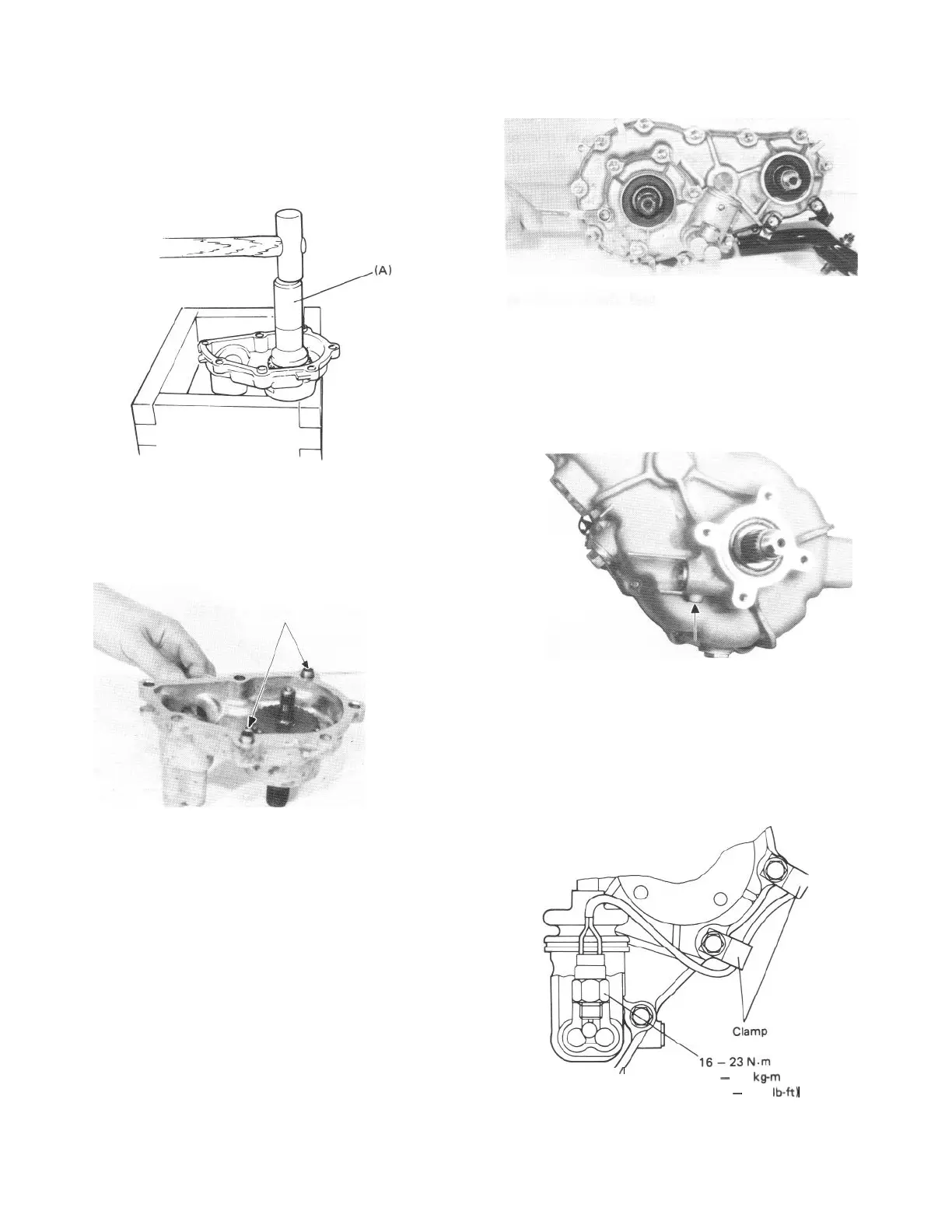

Front Case
1) Install bearing, circlip and oil seal to front
case. Apply grease to oil seal lip and install
output front shaft using bearing installer
(special tool).
Bearing installer (A) : (09913-76010)
Fig. 14-64
2) Put gasket on center case.
3) Check front case to ensure that it is provided
with 2 dowel pins.
Fig. 14-65
4) Install front case to center case.
Fig. 14-66
5) When installing speedometer driven gear
and its gear case in rear case, apply grease to
0 ring and oil seal lip, and align bolt holes
in rear case and driven gear case.
Fig. 14-67
6) Install 4WD ball and switch. Then clamp
switch lead wire properly.
/
1.6
-
2.3 kgm
Fig. 14-68
(12.0
-
16.5
lb-h)
14-21
