Steering Damper

l install steering damper with larger diameter

hole end directed toward pitman arm and hole

in outer shell downward.

l Install steering damper stay, directing its

circular boss side upward.

l Mount steering damper and steering damper

stay bolts from the top.

l Torque steering damper pin nut and damper

nut to specification while directing steering to

straightforward state (with pitman arm in

parallel with center line of car).

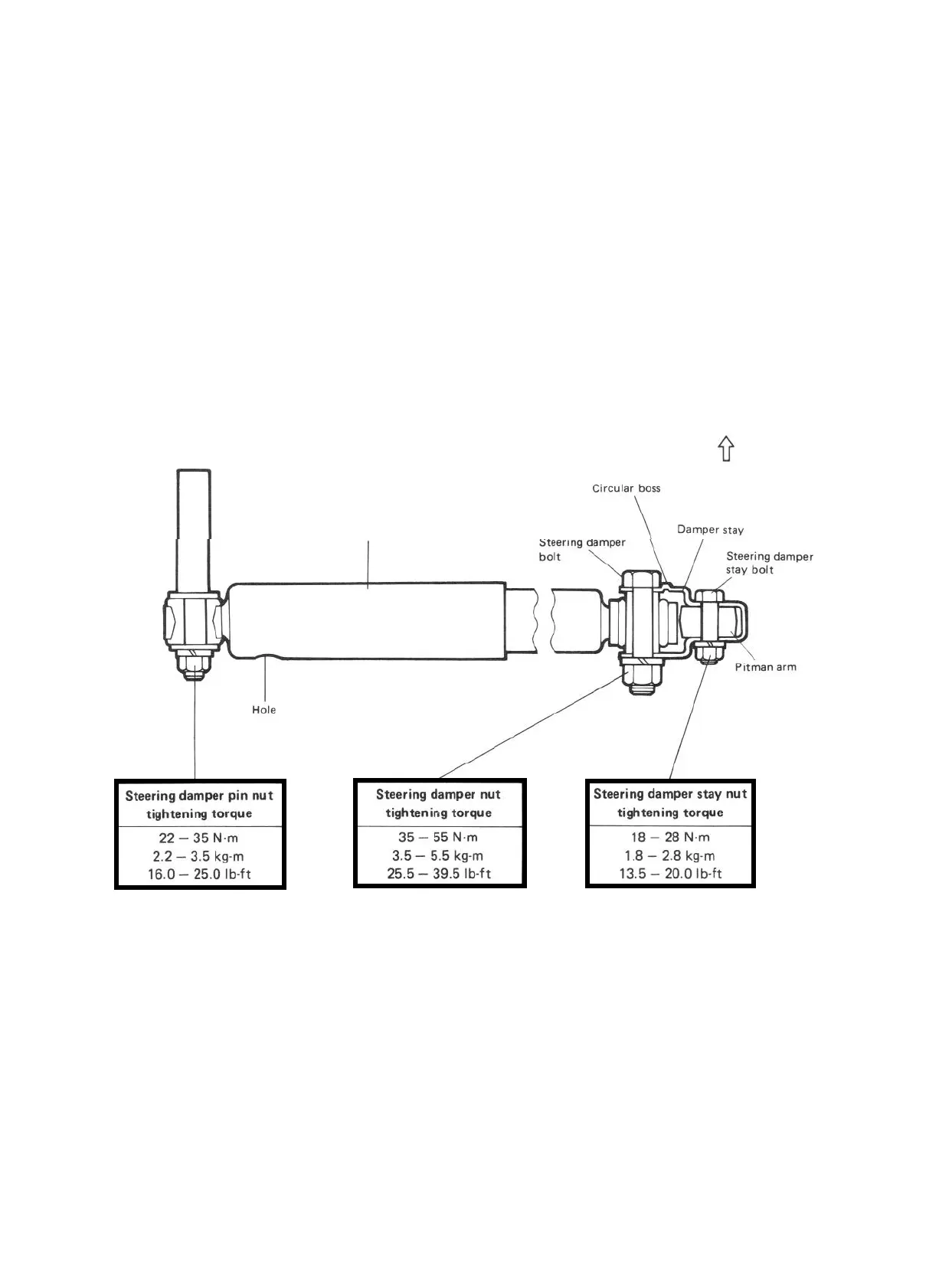

Upward

Steering damper

Fig. 18-29-2

18-13
