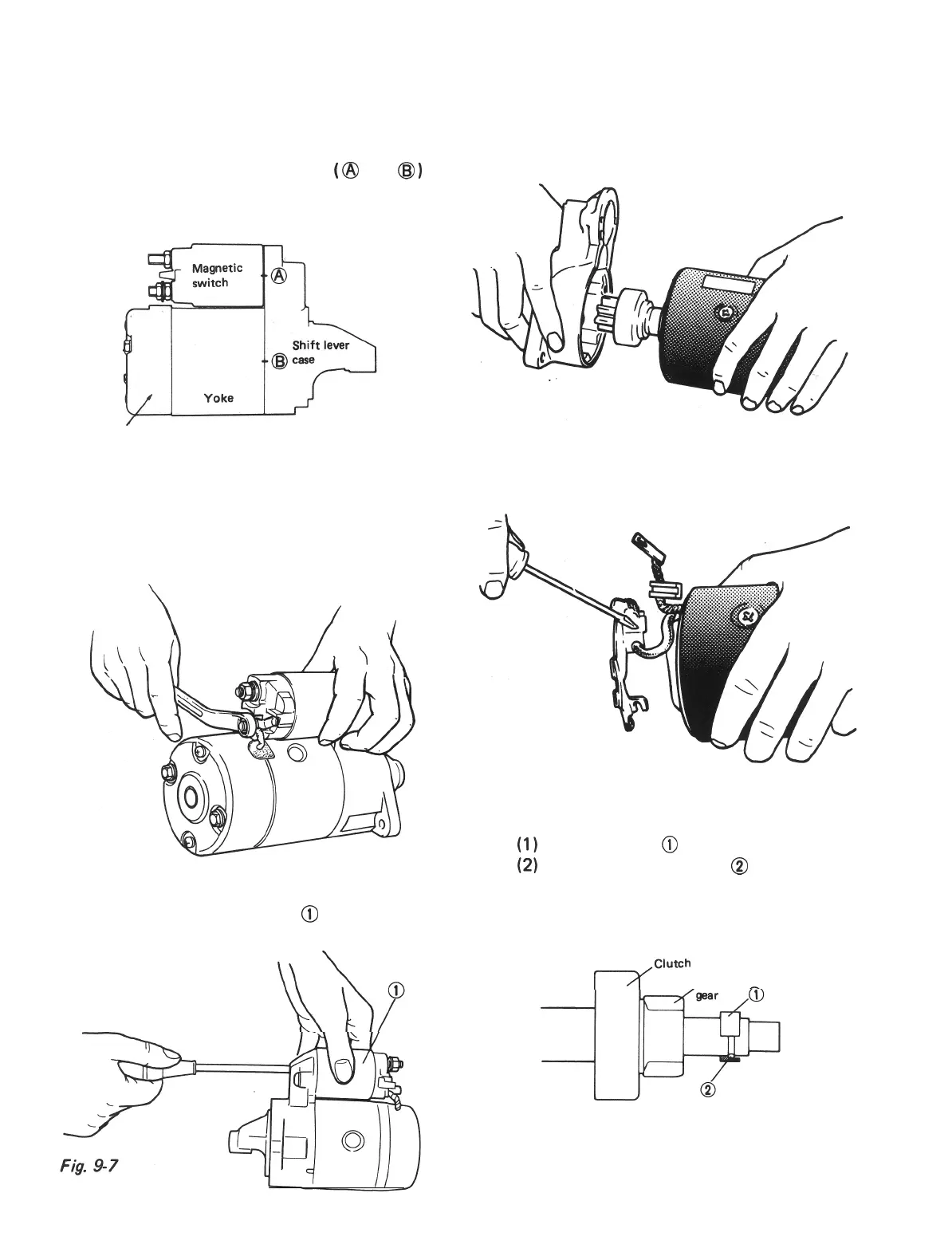

9-5. DISASSEMBLY
NOTE:
Before disassembling starting motor, be sure to
put match marks at two tocations
(
@
and
@I
)
as shown in the figure below so that any possible
mistakes can be avoided.
/
Commutator end
cover
Fig. 95
1) Remove nut securing the end of field coil
lead to terminal on the head of magnetic
switch.
Fig. 9-6
2) Take off magnetic switch
@
from starting
motor body by removing two mounting
screws.
3) Loosen 2 bolts and 2 screws to remove
commutator end cover.
4) Separate drive housing and armature from
yoke.
Fig. 9-8
5) Draw brushes out of holder.
Fig. 49
6) Draw off over running clutch, as follows:
(1)
(2)
Draw stop ring @ toward clutch side.
Remove armature ring
@
and slide off
clutch.
r;)(‘lutch
Pinion
Fig. 910
9-6
