11-2. REMOVAL
Removal of clutch presupposes that the trans-
mission has been dismounted according to the
method outlined in SECTION 13 TRANS-
MISSION.

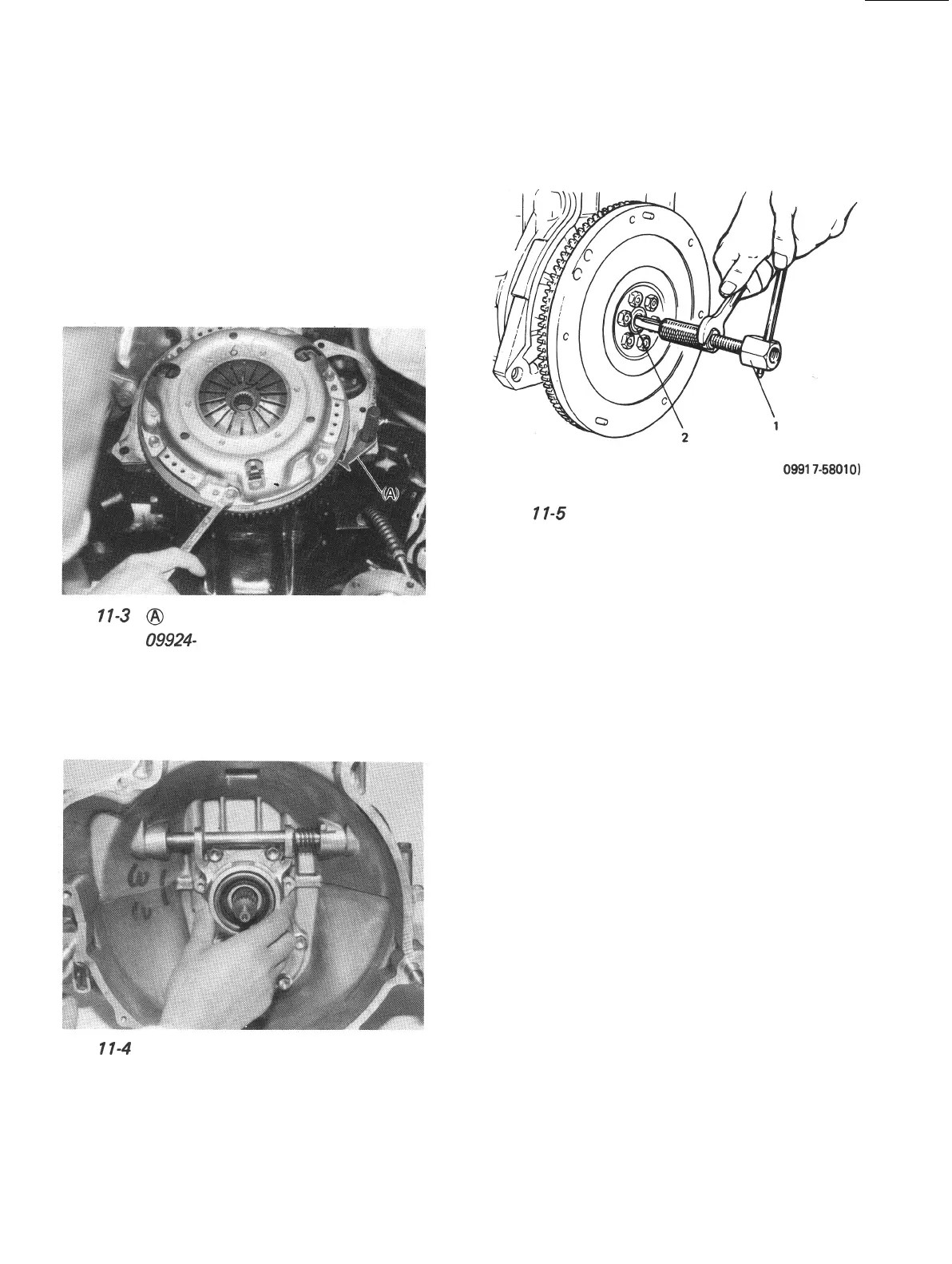

Clutch Cover and Disc
Remove 6 bolts securing clutch cover to fly-
wheel, and take off clutch cover and disc.
Fig. 1 l-3 @ Special tool (Flywheel holder
09924- 17810)
Clutch Release Bearing
Remove clutch release bearing from transmission
input shaft bearing retainer.
Input Shaft End Bearing
Use bearing remover (special tool) for removal
of this bearing.
1. Special tool (Bearing remover 09917-58010)
2. Input shaft bearing
Fig. 11-5
Clutch Release Shaft Bushes
For replacement of bushes, refer to p. 13-5
of SECTION 13 TRANSMISSION.
Fig. 11-4
11-4
