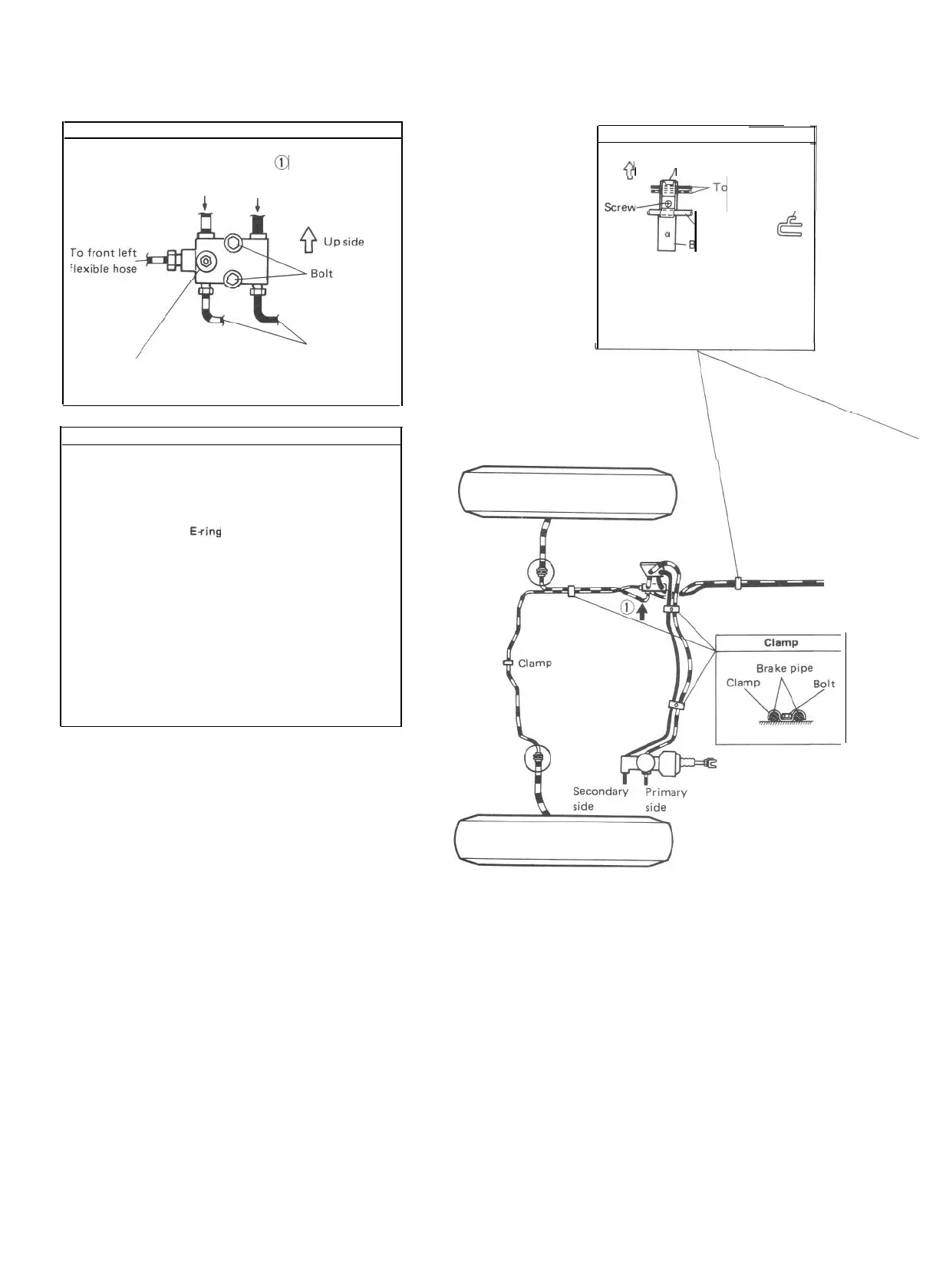

B-way joint
View from arrow
@
From master cylinder
From master cylinder
(Primary side)
4
(Secondary side)
To P & B valve
To front right
flexible hose
Brake flexible hose and E-ring
Make sure that flexible hose is not twisted when it is
installed or connected to the pipe.
When installing flexible hose to bracket, align 6
vertexes of metal fixture on hose with internal angles
of bracket.
insert E-ring till
Ewing
end surface is flush with or
lower than bracket end surface. (Refer to p. 19-39.)
For installation of flexible hose to brake caliper,
refer top. 19-19.
Install the flexible hose so that it won’t be kinked
when the steering wheel is straightened.
After installing the flexible hose, turn the steering
wheel to the right fully and check that the clearance
between the wheel/tire and flexible hose is larger
than 25 mm (0,984 in) in that state and then check
likewise with the steering wheel turned to the full
left position. (This is to ensure that more than 25
mm (0.984 in) clearance is maintained even when
bumping or rebounding fully).
Clamp
Upper side
A
“A”
71’
/
sre~~To
Tr
Fuel pipe
0
Body side
bracket
Hitch lug “B” of brake pipe clamp
to groove “A” of body side bracket
and fix clamp to bodv side bracket
with its screw. Secure fuel pipe at
the same time.
Fig. 19-7-2
19-40
P & B valve
To Next Page
