Springs
Inspect for damage or weakening.
inspect each part for rust. If found defective,
replace.

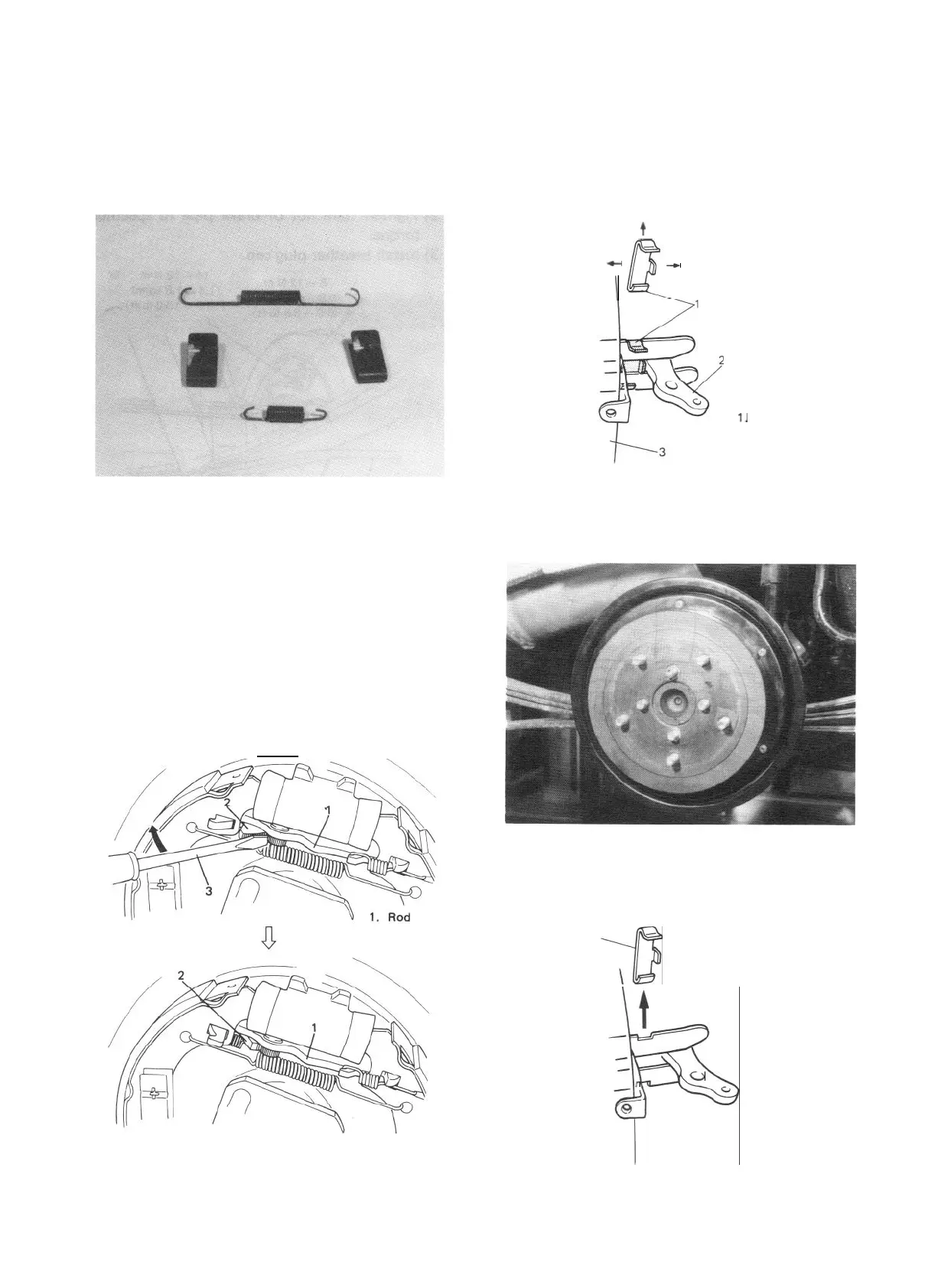

Fig. 19-48
Self Shoe Clearance Adjusting System
To check self shoe clearance adjusting system of
rear brake for operation, follow steps described
below.
1) Remove brake drum.
Carry out steps 1) through 8) of brake drum
removal (p. 19-20).
2) To maximize brake shoe-to-drum clearance,
put screw driver between rod and ratchet and
push down ratchet as shown in figure.
2. Ratchet
3. Driver
Above figure shows ratchet position
where brake shoe-todrum clearance
3) Install parking brake shoe lever stopper plate.
NOTE:
Make sure to install this plate.
Upper side
t
Brake back -
plate side
I
-W Lever side
1. Parking brake shoe
lever stopper plate
2. Parking brake shoe
lever
3. Brake back plate
4) Install brake drum and depress brake pedal
with about 30 kg (66 Ibs) load 4 or 5 times.
Fig. 19-49-2
5) Remove parking brake shoe lever stopper plate.
Stopper -
plate
3
\
t
F
c,
r
G
8
Fig. 19-49
is maximum.
Fig. 19-49-3
19-23
Fig. 19-49-1
