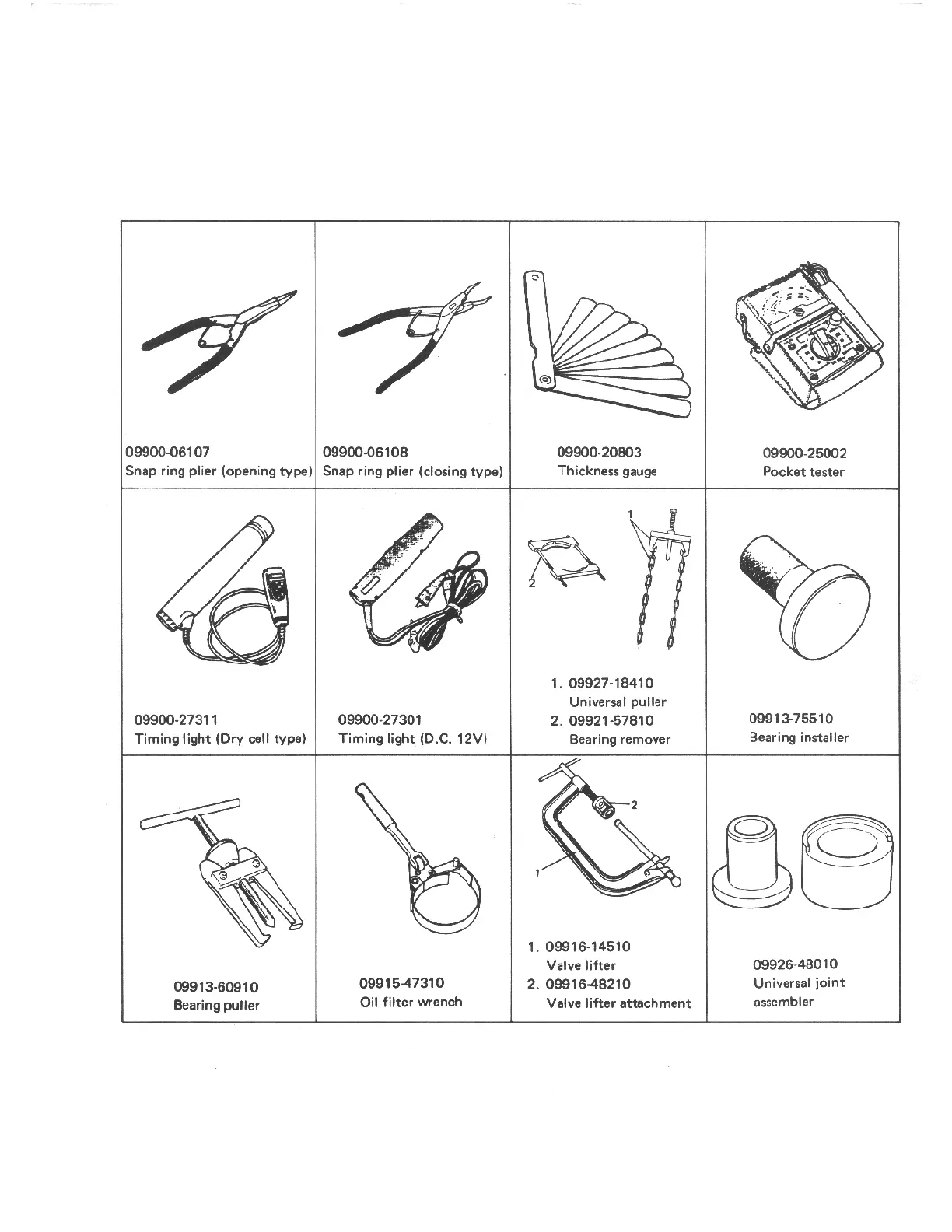

O-3. SPECIAL TOOLS

Special tools assure three things: 1) improved workmanship; 2) speedy execution of jobs for which they

are meant; and 3) protection of parts and components against damage. Here are the special tools pres-

cribed for this Model:

0-5
