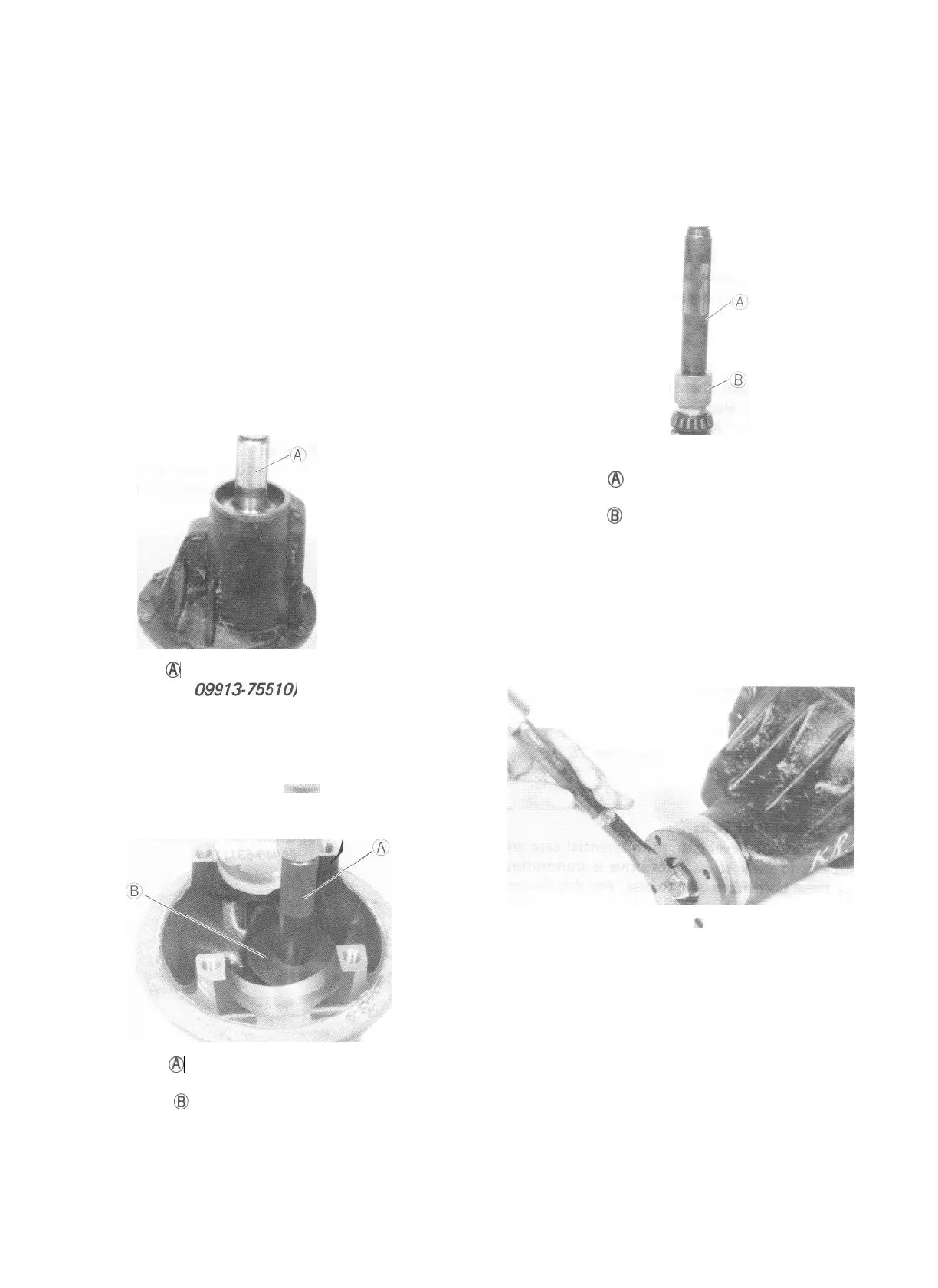

Bevel Pinion Bearings
A press must be used to install two tapered
roller bearings on bevel pinion. Outer races are
press-fitted into the differential carrier and
inner races onto the pinion.
NOTE:
When replacing bevel pinion bearings, check to
ensure that gear side and flange side bearings are
the same marker’s products.
1) For outer race of flange side bearing, use
special tool as shown below.
Fig. 16-28
@ Special tool (Bearing installer
09913-75510)
2) For outer race of gear side bearing, use
special tools.
3) After installing proper bevel pinion shim(s),
press-fit inner race to bevel pinion using
special tools.
@
Special tool (Bearing installer
09925-18010)
Fig. 16-30
@
Special tool (Bearing installer
09940-53111)
4) After installing bevel pinion, spacer, bearings
and universal joint flange to carrier and
carrying out “bevel pinion bearing preload
adjustment”
as described previously, cau I k
bevel pinion nut to prevent it from loosening.
Fig. 16-30-1
Fig. 16-29
@
Special tool (Bearing installer
attachment 09924-74510)
@
Special tool (Bearing installer
09926-683 10)
16-14
